BetterB8 5100

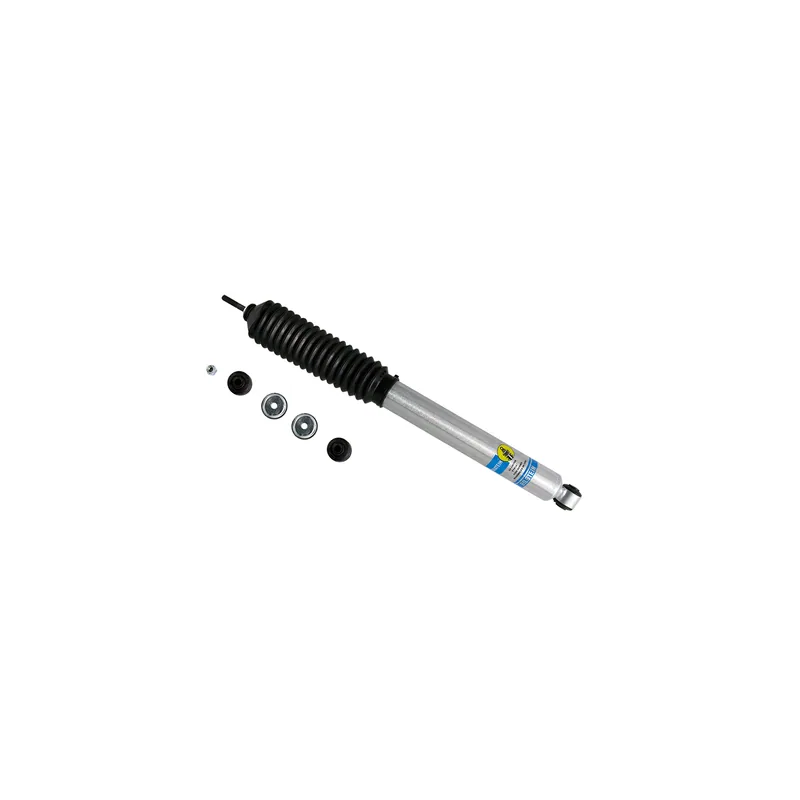

Bilstein 24-146708 B8 5100 Shock Absorber
Sold each · 2 per axle
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
- Country of origin
- Mexico
- Box
- Ships in Bilstein's own box (about 69 × 11 × 11 cm, 2.6 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
76 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| Jeep Wrangler | 2017 | Rubicon, Sahara, Sport, Unlimited Rubicon, Unlimited Sahara, Unlimited Sport | Front | All |
|
| Jeep Wrangler | 2016 | Rubicon, Sahara, Sport, Sport S, Unlimited Rubicon, Unlimited Sahara, Unlimited Sport, Unlimited Sport S | Front | All |
|
| Jeep Wrangler | 2011–2015 | Rubicon, Sahara, Sport, Unlimited Rubicon, Unlimited Sahara, Unlimited Sport | Front | All |
|
| Jeep Wrangler | 2010 | Rubicon, Sahara, Sport, Unlimited Rubicon, Unlimited Sahara, Unlimited Sport, Unlimited X, X | Front | All |
|
| Jeep Wrangler | 2007–2009 | Rubicon, Sahara, Unlimited Rubicon, Unlimited Sahara, Unlimited X, X | Front | All |
|
| Jeep Wrangler JK | 2018 | Rubicon, Sahara, Sport, Unlimited Rubicon, Unlimited Sahara, Unlimited Sport | Front | All |
|
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 24.63
- Collapsed Length (in)
- 14.98
- Extended Length (mm)
- 625.5
- Collapsed Length (mm)
- 380.6
- Body Diameter (od)
- 2.0 in.
- Piston Diameter
- 46mm
- Shaft Diameter
- 14mm
- Upper Mount Type
- Stem
- Lower Mount Type
- Eye 12.1mm
- Body Design
- Smooth Body (Non-Coilover)
- Internal Design
- Monotube
- Finish
- Zinc Plated
- Reservoir
- No
- Adjustable Damping
- Non-Adjustable
- Boot Included
- Black Bellows
- Spring Seat Included
- No
- Stroke/travel Length (in)
- 9.65
- Replacement Mounting Kit
- B4-KT1-Z097A00
Installation & warranty
Bilstein installation instructions (PDF)
Limited Lifetime Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
