BetterB6 4600

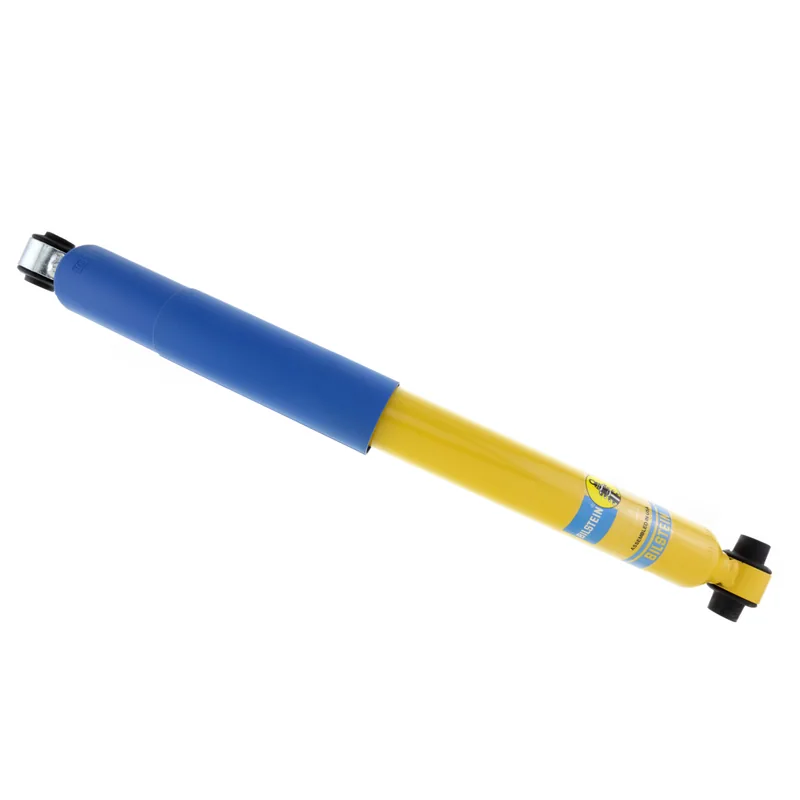

Bilstein 24-103350 B6 4600 Shock Absorber

Sold each · 2 per axle

Call (780) 473-2424

We reply to price requests within one business day.

Will it fit your vehicle?

Want it installed?Eskimo Auto Repair installs Bilstein suspension in Edmonton.

Replaces OE: Chevrolet 15058616, Chevrolet 15172341, Chevrolet 15198311, Chevrolet 15789561, Chevrolet 15881662, Chevrolet 15894447 and 19 more
Chevrolet 15894449, Chevrolet 25820704, General Motors 15058616, General Motors 15172341, General Motors 15198311, General Motors 15789561, General Motors 15881662, General Motors 15894447, General Motors 15894449, General Motors 25820699, General Motors 25820704, GMC 15058616, GMC 15172341, GMC 15198311, GMC 15789561, GMC 15881662, GMC 15894447, GMC 15894449, GMC 25820704
Country of origin: Mexico
Box: Ships in Bilstein's own box (about 66 × 11 × 11 cm, 2.1 kg)

100% genuine Bilstein, from authorized North American distribution.

Fitment

74 vehicles, newest years first

Vehicle	Years	Submodels	Position	Drive / body / engine	Notes
Chevrolet Trailblazer	Years	2009	Submodels	LT	Position	Rear	Drive / body / engine	All	Notes	—
Chevrolet Trailblazer	Years	2008	Submodels	Base, LT	Position	Rear	Drive / body / engine	All	Notes	—
Chevrolet Trailblazer	Years	2005–2007	Submodels	LS, LT	Position	Rear	Drive / body / engine	All	Notes	—
Chevrolet Trailblazer	Years	2004	Submodels	LS, LT, North Face	Position	Rear	Drive / body / engine	All	Notes	—
Chevrolet Trailblazer	Years	2002–2003	Submodels	LS, LT, LTZ, North Face	Position	Rear	Drive / body / engine	All	Notes	—
Chevrolet Trailblazer EXT	Years	2005–2006	Submodels	LS, LT	Position	Rear	Drive / body / engine	All	Notes	—
Chevrolet Trailblazer EXT	Years	2003–2004	Submodels	LS, LT, North Face	Position	Rear	Drive / body / engine	All	Notes	—
Chevrolet Trailblazer EXT	Years	2002	Submodels	LT, North Face	Position	Rear	Drive / body / engine	All	Notes	—
GMC Envoy	Years	2007–2009	Submodels	SLE, SLT	Position	Rear	Drive / body / engine	All	Notes	—
GMC Envoy	Years	2002–2006	Submodels	SLE, SLT	Position	Rear	Drive / body / engine	All	Notes	Spring type: Front: Coil , Rear: Coil
GMC Envoy XL	Years	2002–2006	Submodels	SLE, SLT	Position	Rear	Drive / body / engine	All	Notes	Spring type: Front: Coil , Rear: Coil
Isuzu Ascender	Years	2007–2008	Submodels	S	Position	Rear	Drive / body / engine	All	Notes	—
Isuzu Ascender	Years	2006	Submodels	Base, LS	Position	Rear	Drive / body / engine	All	Notes	—
Isuzu Ascender	Years	2004–2005	Submodels	LS, Limited, S	Position	Rear	Drive / body / engine	All	Notes	—
Isuzu Ascender	Years	2003	Submodels	Base, LS, Limited	Position	Rear	Drive / body / engine	All	Notes	—
Oldsmobile Bravada	Years	2002–2004	Submodels	Base	Position	Rear	Drive / body / engine	All	Notes	Spring type: Front: Coil , Rear: Coil

Specifications

As Bilstein publishes them.

Extended Length (in): 23.35
Collapsed Length (in): 14.86
Extended Length (mm): 593.2
Collapsed Length (mm): 377.5
Body Diameter (od): 2.0 in.
Upper Mount Type: Eye 12.9mm
Lower Mount Type: Eye 12.7mm
Internal Design: Monotube
Finish: Yellow Paint
Reservoir: No
Adjustable Damping: Non-Adjustable
Boot Included: Blue Straight
Spring Seat Included: No

Installation & warranty

Bilstein general installation instructions (PDF)

Limited Lifetime Warranty · Warranty terms (PDF)

100% genuine Bilstein, from authorized North American distribution.
