BetterB6 Performance

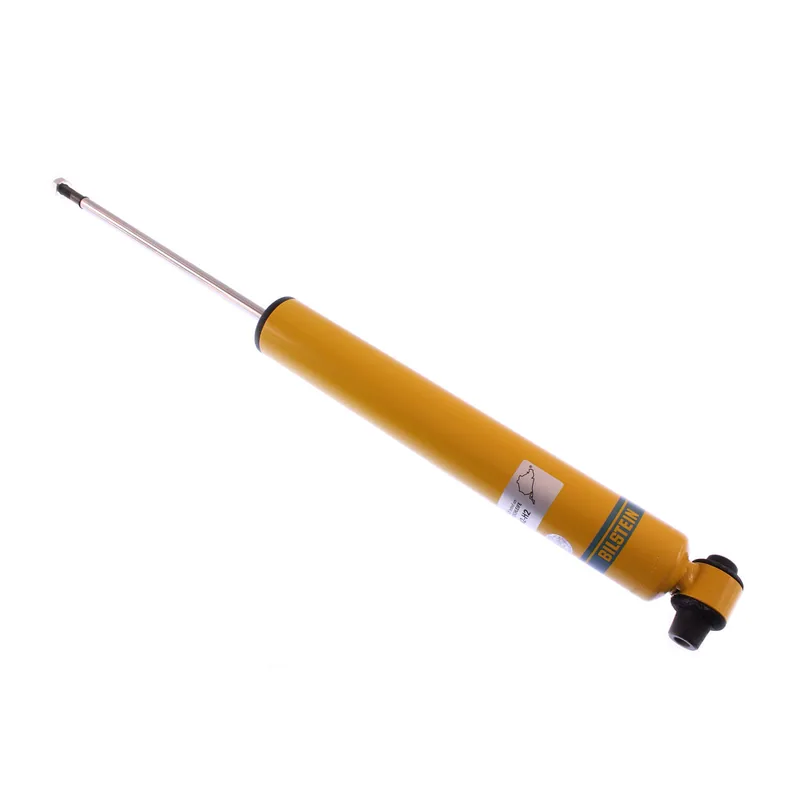

Bilstein 24-065429 B6 Performance Shock Absorber

Sold each · 2 per axle

Call (780) 473-2424

We reply to price requests within one business day.

Will it fit your vehicle?

Want it installed?Eskimo Auto Repair installs Bilstein suspension in Edmonton.

Replaces OE: Volkswagen 3B5 513 031 E, Volkswagen 3B9 513 031 B, Volkswagen 3B9 513 031 N, Volkswagen 4B0 513 032 D
Replaces Bilstein: 24-065436
Country of origin: Germany
Box: Ships in Bilstein's own box (about 66 × 11 × 11 cm, 2.2 kg)

100% genuine Bilstein, from authorized North American distribution.

Fitment

21 vehicles, newest years first

Vehicle	Years	Submodels	Position	Drive / body / engine	Notes
Audi A6	Years	2001–2004	Submodels	Base	Position	Rear	Drive / body / engine	All	Notes	—
Volkswagen Passat	Years	2005	Submodels	GL, GL TDI, GLS, GLS TDI, GLX	Position	Rear	Drive / body / engine	Sedan	Notes	For Vehicles Without Ride Height Control From Chassis # 4B-1-000001 Original spring seat must be reused Without Off-road Suspension Check which applies
Volkswagen Passat	Years	2004–2005	Submodels	GL, GL TDI, GLS, GLS TDI, GLX	Position	Rear	Drive / body / engine	Wagon	Notes	For Vehicles Without Ride Height Control From Chassis # 4B-1-000001 Original spring seat must be reused Without Off-road Suspension Check which applies
Volkswagen Passat	Years	2004	Submodels	GL, GLS, GLS TDI, GLX	Position	Rear	Drive / body / engine	Sedan	Notes	For Vehicles Without Ride Height Control From Chassis # 4B-1-000001 Original spring seat must be reused Without Off-road Suspension Check which applies
Volkswagen Passat	Years	2003	Submodels	GL, GLS, GLX	Position	Rear	Drive / body / engine	Sedan	Notes	For Vehicles Without Ride Height Control From Chassis # 4B-1-000001 Original spring seat must be reused Without Off-road Suspension Check which applies
Volkswagen Passat	Years	2003	Submodels	GL, GLS, GLX	Position	Rear	Drive / body / engine	Wagon	Notes	For Vehicles Without Ride Height Control From Chassis # 4B-1-000001 Original spring seat must be reused Without Off-road Suspension Check which applies
Volkswagen Passat	Years	2001–2002	Submodels	GLS, GLX	Position	Rear	Drive / body / engine	Sedan	Notes	For Vehicles Without Ride Height Control From Chassis # 4B-1-000001 Original spring seat must be reused Without Off-road Suspension Check which applies
Volkswagen Passat	Years	2001–2002	Submodels	GLS, GLX	Position	Rear	Drive / body / engine	Wagon	Notes	For Vehicles Without Ride Height Control From Chassis # 4B-1-000001 Original spring seat must be reused Without Off-road Suspension Check which applies

Specifications

As Bilstein publishes them.

Extended Length (in): 23.50
Collapsed Length (in): 15.04
Extended Length (mm): 597.0
Collapsed Length (mm): 382.0
Upper Mount Type: Stem
Lower Mount Type: Eye 10.2mm
Internal Design: Monotube
Finish: Yellow Paint
Boot Included: No
Spring Seat Included: No

Installation & warranty

Bilstein installation instructions (PDF)

Limited Lifetime Warranty · Warranty terms (PDF)

100% genuine Bilstein, from authorized North American distribution.
