BetterB6 Performance

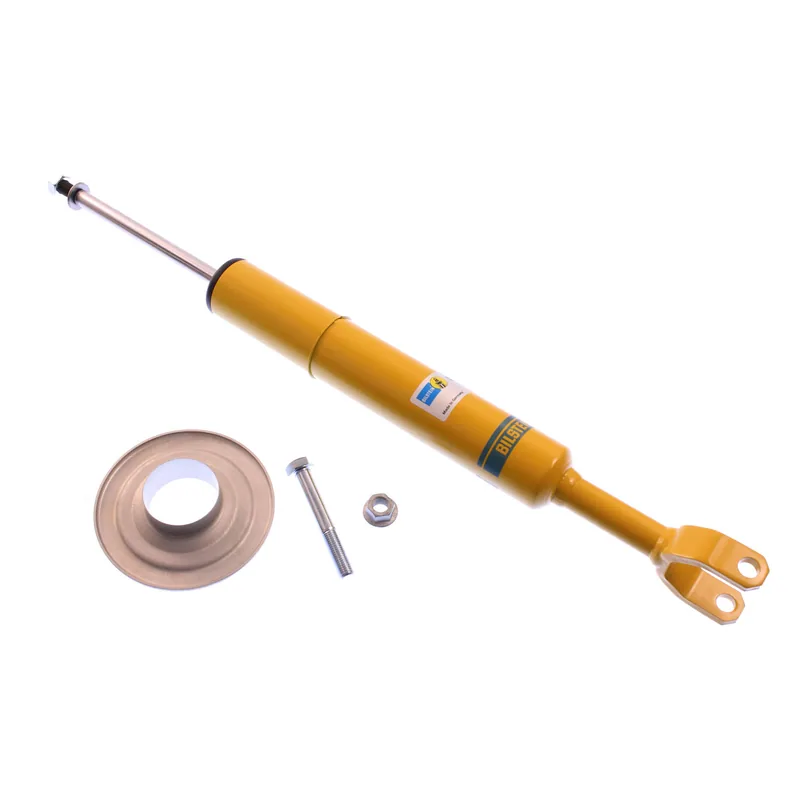

Bilstein 24-065122 B6 Performance Shock Absorber
Sold each · 2 per axle
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
- Replaces OE
Volkswagen 3B0 413 031 AB, Volkswagen 3B0 413 031 AD, Volkswagen 3B0 413 031 P, Volkswagen 3B0 413 031 R, Volkswagen 3B0 413 031 S, Volkswagen 3B7 413 031 and 7 more
Volkswagen 4B0 412 031 BD, Volkswagen 4B0 412 031 BT, Volkswagen 4B0 412 031 CD, Volkswagen 4B0 412 031 CE, Volkswagen 8D0 413 031 AD, Volkswagen 8D0 413 031 BS, Volkswagen 8E0 413 031 BM
- Country of origin
- Germany
- Box
- Ships in Bilstein's own box (about 67 × 11 × 11 cm, 2.8 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
26 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| Volkswagen Passat | 2005 | GL, GL TDI, GLS, GLS 4 Motion, GLX, GLX 4 Motion | Front | All | — |
| Volkswagen Passat | 2004 | GL, GLS, GLS 4 Motion, GLX, GLX 4 Motion, W8 | Front | All | — |
| Volkswagen Passat | 2003 | GL, GLS, GLX, GLX 4 Motion, W8 | Front | All | — |
| Volkswagen Passat | 2002 | GLS, GLS 4 Motion, GLX, GLX 4 Motion, W8 | Front | All | — |
| Volkswagen Passat | 2001 | GLS, GLS 4 Motion, GLX, GLX 4 Motion | Front | All | — |
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 23.64
- Collapsed Length (in)
- 17.09
- Extended Length (mm)
- 600.5
- Collapsed Length (mm)
- 434.0
- Upper Mount Type
- Stem
- Lower Mount Type
- Clevis
- Internal Design
- Monotube
- Finish
- Yellow Paint
- Boot Included
- No
- Spring Seat Included
- Yes
Installation & warranty
Bilstein installation instructions (PDF)
Limited Lifetime Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
