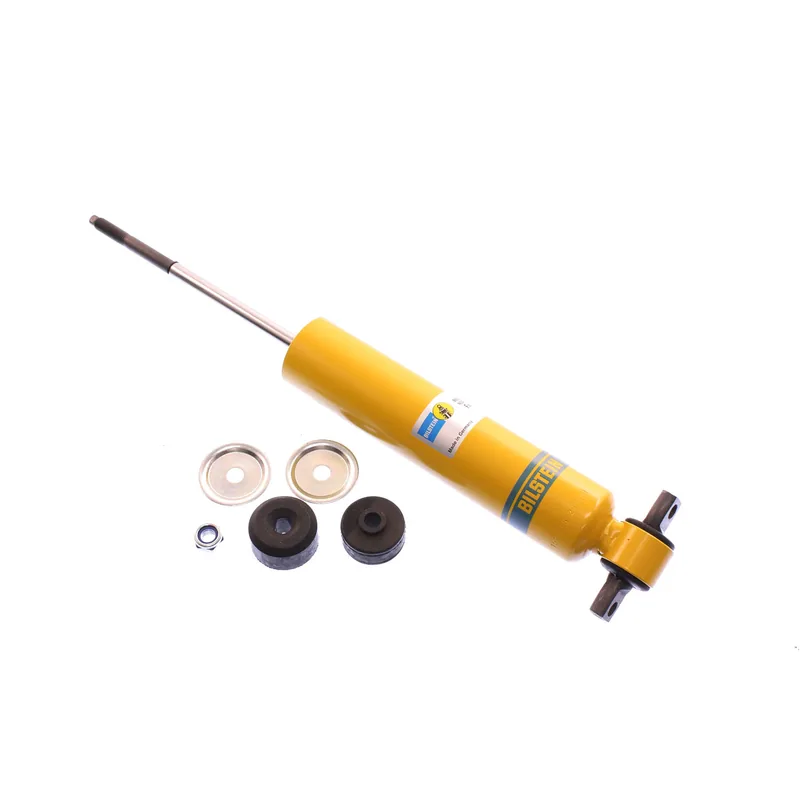

Bilstein 24-025652 B6 Shock Absorber

Bilstein 24-025652 B6 Shock Absorber

Sold each · 2 per axle

Call (780) 473-2424

We reply to price requests within one business day.

Will it fit your vehicle?

Country of origin
Germany
Box
Ships in Bilstein's own box (about 42 × 13 × 13 cm, 2.3 kg)

100% genuine Bilstein, from authorized North American distribution.

Fitment

83 vehicles, newest years first

Chevrolet Express 15001996–2002Base, LSFrontAll
  • To GVWR: 7,300lbs
Chevrolet Express 25001996–2002Base, LSFrontAll
  • GVWR: up to and over 7,300lbs
Chevrolet Express 35001996–2002Base, LSFrontAll
  • To GVWR: 7,300lbs
GMC Savana 15002001–2002Base, SLTFrontAll
  • To GVWR: 7,300lbs
GMC Savana 15001996–2000Base, SLEFrontAll
  • To GVWR: 7,300lbs
GMC Savana 25002002Base, SLTFrontAll
  • GVWR: up to and over 7,300lbs
GMC Savana 25002001BaseFrontAll
  • GVWR: up to and over 7,300lbs
GMC Savana 25001996–2000Base, SLEFrontAll
  • GVWR: up to and over 7,300lbs
GMC Savana 35002001–2002Base, SLTFrontAll
  • To GVWR: 7,300lbs
GMC Savana 35001996–2000Base, SLEFrontAll
  • To GVWR: 7,300lbs

Specifications

As Bilstein publishes them.

Extended Length (in)
14.11
Collapsed Length (in)
9.61
Extended Length (mm)
358.5
Collapsed Length (mm)
244.0
Upper Mount Type
Stem
Lower Mount Type
Bar Pin
Internal Design
Monotube
Finish
Yellow Paint
Boot Included
No
Spring Seat Included
No
Chassis Manufacturer
General Motors
Chassis Model
Express/Savana
Chassis Model - Extended
1500/2500/3500
Chassis Class
N/A
Chassis Year Range
1996-2002
Position
Front

Installation & warranty

100% genuine Bilstein, from authorized North American distribution.

BILSTEIN is a trademark of thyssenkrupp Bilstein GmbH. Eskimo is an independent retailer.
