BetterB6 4600

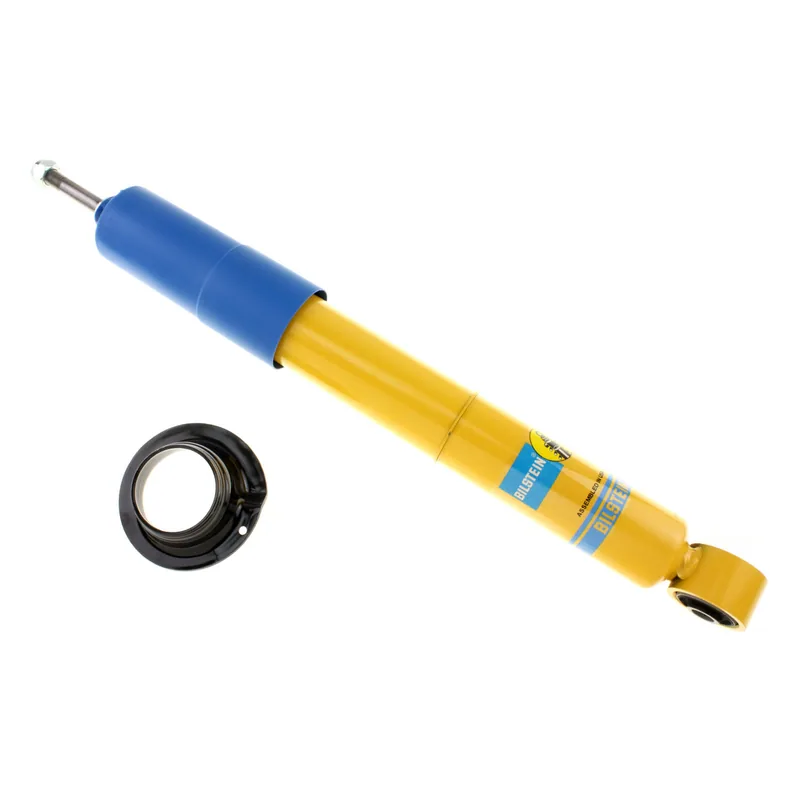

Bilstein 24-022842 B6 4600 Shock Absorber
Sold each · 2 per axle
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
- Replaces OE
- Toyota 48510-09270, Toyota 48510-A9050
- Country of origin
- Mexico
- Box
- Ships in Bilstein's own box (about 53 × 11 × 11 cm, 2.5 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
25 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| Toyota Tacoma | 2001–2004 | Pre Runner | Front | All | — |
| Toyota Tacoma | 2001–2004 | Base | Front | 4WD · L4 2.7L | — |
| Toyota Tacoma | 2001–2004 | Base | Front | 4WD · V6 3.4L | — |
| Toyota Tacoma | 1998–2000 | Limited, Pre Runner | Front | All | — |
| Toyota Tacoma | 1998–2000 | Base, SR5 | Front | 4WD · L4 2.7L | — |
| Toyota Tacoma | 1998–2000 | Base, SR5 | Front | 4WD · V6 3.4L | — |
| Toyota Tacoma | 1996–1997 | Base | Front | 4WD · L4 2.7L | — |
| Toyota Tacoma | 1996–1997 | Base | Front | 4WD · V6 3.4L | — |
| Toyota Tacoma | 1995–1997 | SR5 | Front | All | — |
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 18.41
- Collapsed Length (in)
- 13.70
- Extended Length (mm)
- 467.5
- Collapsed Length (mm)
- 348.0
- Body Diameter (od)
- 2.0 in.
- Upper Mount Type
- Stem
- Lower Mount Type
- Eye 14.2mm
- Internal Design
- Monotube
- Finish
- Yellow Paint
- Reservoir
- No
- Adjustable Damping
- Non-Adjustable
- Boot Included
- Black Straight
- Spring Seat Included
- Yes
Installation & warranty
Bilstein installation instructions (PDF)
Limited Lifetime Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
