BetterB6 Performance

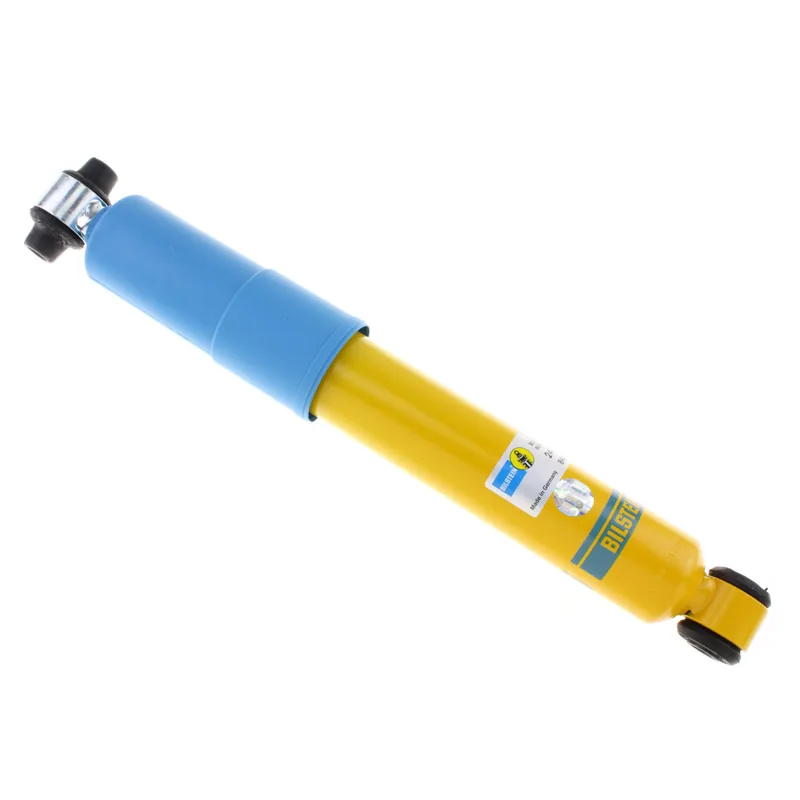

Bilstein 24-021364 B6 Shock Absorber
Sold each · 2 per axle
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
- Replaces OE
- Chevrolet 22064854, General Motors 22064854, GMC 22064854
- Country of origin
- Germany
- Box
- Ships in Bilstein's own box (about 48 × 11 × 11 cm, 1.9 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
111 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| Chevrolet Astro | 1996–2005 | Base, LS, LT | Front | AWD | — |
| Chevrolet Astro | 1990–1995 | Base, CL, CS, LT | Front | AWD | — |
| GMC Safari | 2003–2005 | Base, SLE, SLT | Front | AWD | — |
| GMC Safari | 1999–2002 | SL, SLE, SLT | Front | AWD | — |
| GMC Safari | 1998 | SL, SLE, SLT, SLX | Front | AWD | — |
| GMC Safari | 1995–1997 | Base, SL, SLE, SLT, SLX | Front | AWD | — |
| GMC Safari | 1994 | Base, SLE, SLT, SLX | Front | AWD | — |
| GMC Safari | 1991–1993 | Base, SLE, SLT | Front | AWD | — |
| GMC Safari | 1990 | Base, SLE, SLT, SLX | Front | AWD | — |
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 16.18
- Collapsed Length (in)
- 11.22
- Extended Length (mm)
- 411.0
- Collapsed Length (mm)
- 285.0
- Upper Mount Type
- Eye 12.9mm
- Lower Mount Type
- Eye 12.75mm
- Internal Design
- Monotube
- Finish
- Yellow Paint
- Boot Included
- Blue Straight
- Spring Seat Included
- No
- Chassis Manufacturer
- Workhorse
- Chassis Model
- P Series
- Chassis Model - Extended
- P30/P32
- Chassis Class
- A
- Chassis Year Range
- 2000-2005
- Suspension Type
- Widetrack IFS
- Position
- Front
Installation & warranty
Bilstein general installation instructions (PDF)
Limited Lifetime Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
BILSTEIN is a trademark of thyssenkrupp Bilstein GmbH. Eskimo is an independent retailer.
