BetterB6 4600

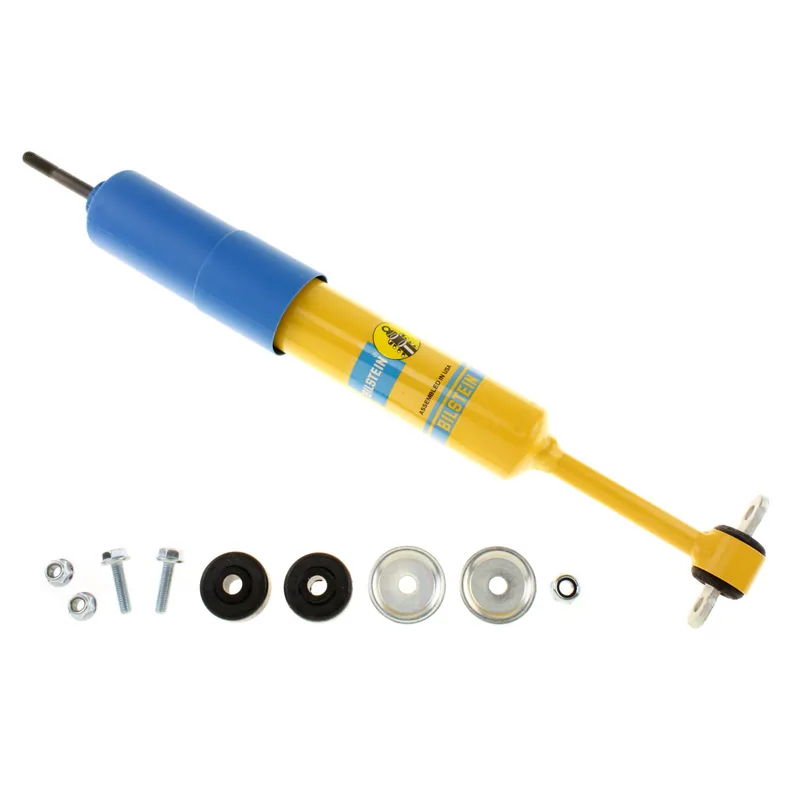

Bilstein 24-021333 B6 4600 Shock Absorber

Sold each · 2 per axle

Call (780) 473-2424

We reply to price requests within one business day.

Will it fit your vehicle?

Want it installed?Eskimo Auto Repair installs Bilstein suspension in Edmonton.

Replaces OE: Ford 5U2Z 18V124-NA, Ford F77Z 18124-VB
Country of origin: Mexico
Box: Ships in Bilstein's own box (about 52 × 13 × 13 cm, 2.1 kg)

100% genuine Bilstein, from authorized North American distribution.

Fitment

52 vehicles, newest years first

Vehicle	Years	Submodels	Position	Drive / body / engine	Notes
Ford Explorer	Years	2001	Submodels	Eddie Bauer, Limited, Postal, XL Fleet, XLS, XLT	Position	Front	Drive / body / engine	4WD	Notes	Without Self-Leveling Suspension
Ford Explorer	Years	2000–2001	Submodels	Eddie Bauer, Limited, XLT	Position	Front	Drive / body / engine	AWD	Notes	Without Self-Leveling Suspension
Ford Explorer	Years	2000	Submodels	Eddie Bauer, Limited, Postal, Sport, XL Fleet, XLS, XLT	Position	Front	Drive / body / engine	4WD	Notes	Without Self-Leveling Suspension
Ford Explorer	Years	1999	Submodels	Eddie Bauer, Sport, XL, XLS, XLT	Position	Front	Drive / body / engine	4WD	Notes	Without Self-Leveling Suspension
Ford Explorer	Years	1999	Submodels	Eddie Bauer, XLS, XLT	Position	Front	Drive / body / engine	AWD	Notes	Without Self-Leveling Suspension
Ford Explorer	Years	1998	Submodels	Eddie Bauer, Limited, XLT	Position	Front	Drive / body / engine	AWD	Notes	Without Self-Leveling Suspension
Ford Explorer	Years	1995–1998	Submodels	Eddie Bauer, Limited, Sport, XL, XLT	Position	Front	Drive / body / engine	4WD	Notes	Without Self-Leveling Suspension
Ford Explorer	Years	1996–1997	Submodels	XLT	Position	Front	Drive / body / engine	AWD	Notes	Without Self-Leveling Suspension
Ford Explorer	Years	1995	Submodels	Expedition	Position	Front	Drive / body / engine	All	Notes	Without Self-Leveling Suspension
Ford Explorer Sport Trac	Years	2005	Submodels	Adrenalin, XLS, XLT	Position	Front	Drive / body / engine	4WD	Notes	—
Ford Explorer Sport Trac	Years	2003–2004	Submodels	XLS, XLT	Position	Front	Drive / body / engine	4WD	Notes	—
Ford Explorer Sport Trac	Years	2002	Submodels	XL	Position	Front	Drive / body / engine	4WD	Notes	—
Ford Explorer Sport Trac	Years	2001	Submodels	Base	Position	Front	Drive / body / engine	4WD	Notes	—
Mercury Mountaineer	Years	1997–2000	Submodels	Base	Position	Front	Drive / body / engine	4WD	Notes	Without Self-Leveling Suspension
Mercury Mountaineer	Years	1997–2000	Submodels	Base	Position	Front	Drive / body / engine	AWD	Notes	Without Self-Leveling Suspension

Specifications

As Bilstein publishes them.

Extended Length (in): 18.05
Collapsed Length (in): 13.72
Extended Length (mm): 458.5
Collapsed Length (mm): 348.5
Body Diameter (od): 2.0 in.
Upper Mount Type: Stem
Lower Mount Type: Bar Pin
Internal Design: Monotube
Finish: Yellow Paint
Reservoir: No
Adjustable Damping: Non-Adjustable
Boot Included: Blue Straight
Spring Seat Included: No
Replacement Mounting Kit: B4-KT1-Z117A00

Installation & warranty

Bilstein installation instructions 1 (PDF) Bilstein installation instructions 2 (PDF)

Limited Lifetime Warranty · Warranty terms (PDF)

100% genuine Bilstein, from authorized North American distribution.
