BetterB6 4600

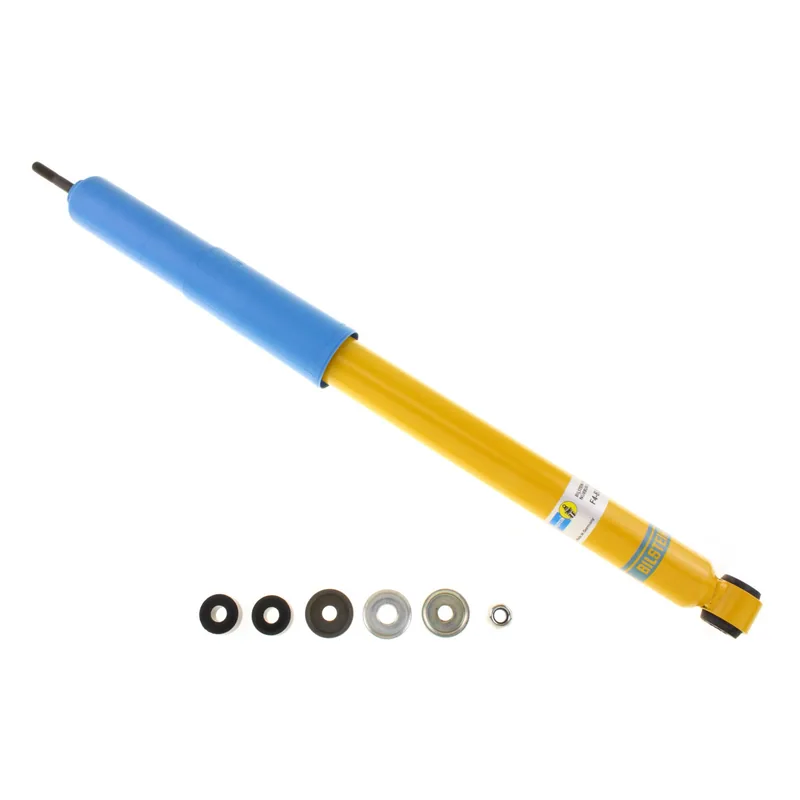

Bilstein 24-021203 B6 4600 Shock Absorber
Sold each · 2 per axle
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
- Replaces OE
- Toyota 48531-49098, Toyota 48531-49137, Toyota 48531-49148, Toyota 48531-49275
- Country of origin
- Germany
- Box
- Ships in Bilstein's own box (about 67 × 11 × 11 cm, 1.8 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
5 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| Toyota RAV4 | 1996–2000 | Base | Rear | All | — |
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 23.78
- Collapsed Length (in)
- 14.31
- Extended Length (mm)
- 604.0
- Collapsed Length (mm)
- 363.5
- Upper Mount Type
- Stem
- Lower Mount Type
- Eye 16mm
- Internal Design
- Monotube
- Finish
- Yellow Paint
- Reservoir
- No
- Adjustable Damping
- Non-Adjustable
- Boot Included
- Blue Straight
- Spring Seat Included
- No
- Replacement Mounting Kit
- B4-KT1-Z008A00
Installation & warranty
Bilstein installation instructions 1 (PDF) Bilstein installation instructions 2 (PDF)
Limited Lifetime Warranty · Warranty terms (PDF)
