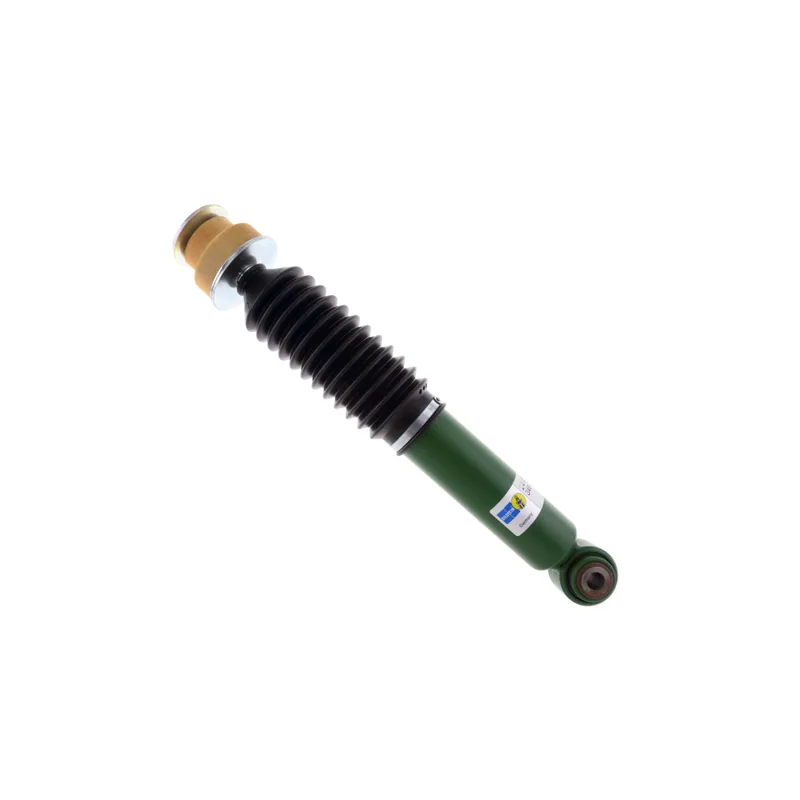

Bilstein 24-018647 B4 OE Replacement Shock Absorber
Sold each · 2 per axle
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
- Replaces OE
- Jaguar MMC 3540 BA, Jaguar MNA 3540 CC, Jaguar MNA 3540 CD
- Country of origin
- Germany
- Box
- Ships in Bilstein's own box (about 43 × 11 × 11 cm, 2.4 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
3 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| Jaguar XJR | 1997 | Base | Rear | All |
|
| Jaguar XJR | 1995–1996 | Base | Rear | All | — |
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 14.29
- Collapsed Length (in)
- 10.20
- Extended Length (mm)
- 363.0
- Collapsed Length (mm)
- 259.0
- Upper Mount Type
- Stem
- Lower Mount Type
- Eye
- Internal Design
- Monotube
- Finish
- Green Paint
- Boot Included
- Black Bellows
- Spring Seat Included
- No
Installation & warranty
Bilstein general installation instructions (PDF)
Limited Lifetime Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
