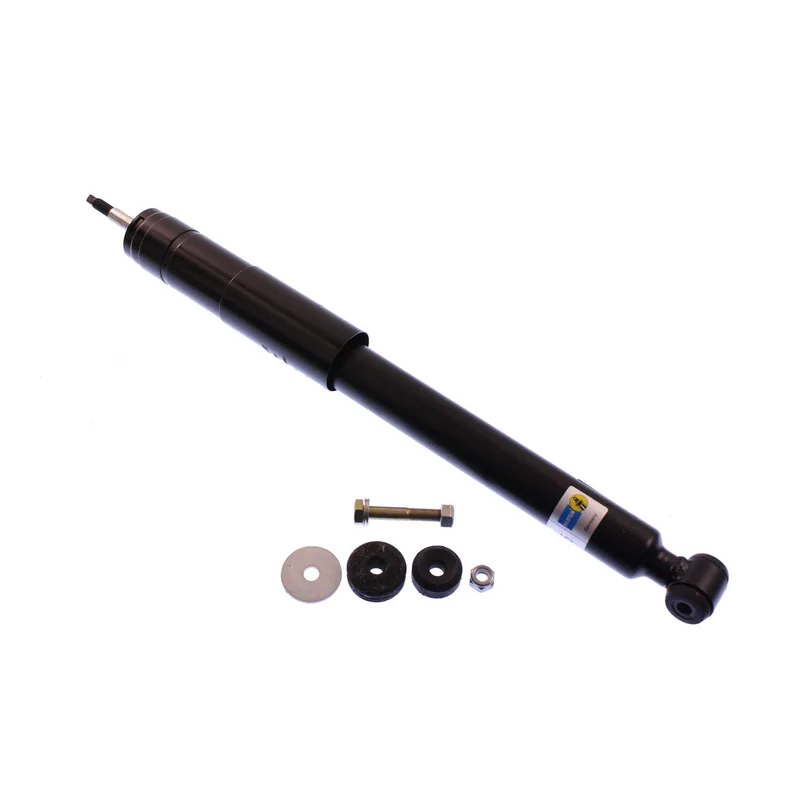

Bilstein 24-014052 B4 OE Replacement Shock Absorber
Sold each · 2 per axle
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
- Replaces OE
Mercedes-Benz 124 326 12 00, Mercedes-Benz 201 320 00 31, Mercedes-Benz 201 320 03 31, Mercedes-Benz 201 320 09 31, Mercedes-Benz 201 320 11 31, Mercedes-Benz 201 326 05 00 and 4 more
Mercedes-Benz 201 326 08 00, Mercedes-Benz 201 326 10 00, Mercedes-Benz 201 326 15 00, Mercedes-Benz 201 326 17 00
- Replaces Bilstein
- 24-184540
- Country of origin
- Germany
- Box
- Ships in Bilstein's own box (about 57 × 11 × 11 cm, 1.8 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
22 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| Mercedes-Benz 190D | 1988–1989 | 2.5 | Rear | All |
|
| Mercedes-Benz 190D | 1987 | 2.5, 2.5 Turbo | Rear | All |
|
| Mercedes-Benz 190D | 1986 | 2.5 | Rear | All |
|
| Mercedes-Benz 190D | 1984–1985 | 2.2 | Rear | All |
|
| Mercedes-Benz 190E | 1991–1993 | 2.3, 2.6 | Rear | All |
|
| Mercedes-Benz 190E | 1990 | 2.6 | Rear | All |
|
| Mercedes-Benz 190E | 1989 | 2.6 | Rear | All |
|
| Mercedes-Benz 190E | 1987–1988 | 2.3, 2.6 | Rear | All |
|
| Mercedes-Benz 190E | 1984–1986 | 2.3 | Rear | All |
|
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 19.86
- Collapsed Length (in)
- 15.00
- Extended Length (mm)
- 504.5
- Collapsed Length (mm)
- 381.0
- Upper Mount Type
- Stem
- Lower Mount Type
- Eye 10.4mm
- Internal Design
- Monotube
- Finish
- Black Paint
- Boot Included
- Black Straight
- Spring Seat Included
- No
Installation & warranty
Bilstein installation instructions 1 (PDF) Bilstein installation instructions 2 (PDF)
Limited Lifetime Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
