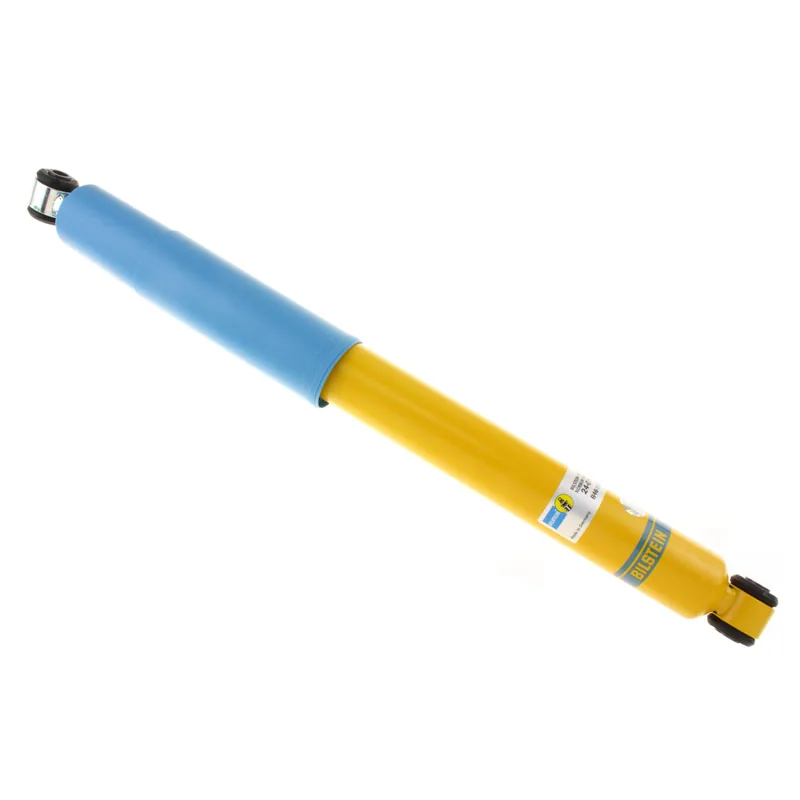

Bilstein 24-011419 B6 Shock Absorber

Sold each · 2 per axle

Call (780) 473-2424

We reply to price requests within one business day.

Will it fit your vehicle?

Want it installed?Eskimo Auto Repair installs Bilstein suspension in Edmonton.

Country of origin: Germany
Box: Ships in Bilstein's own box (about 69 × 11 × 11 cm, 2.3 kg)

100% genuine Bilstein, from authorized North American distribution.

Fitment

230 vehicles, newest years first

Vehicle	Years	Submodels	Position	Drive / body / engine	Notes
Chevrolet G30	Years	1996	Submodels	Beauville, Chevy Van, Hi-Cube, Sportvan	Position	Rear	Drive / body / engine	All	Notes	With Dual Rear Wheels
Chevrolet G30	Years	1985–1995	Submodels	Beauville, Chevy Van, Hi-Cube, Sportvan	Position	Rear	Drive / body / engine	All	Notes	Class C With Dual Rear Wheels Check which applies
Chevrolet G30	Years	1983–1984	Submodels	Beauville, Bonaventure, Chevy Van, Hi-Cube, Sportvan	Position	Rear	Drive / body / engine	All	Notes	Class C With Dual Rear Wheels Check which applies
Chevrolet G30	Years	1975–1982	Submodels	Beauville, Chevy Van, Hi-Cube, Sportvan	Position	Rear	Drive / body / engine	All	Notes	Class C With Dual Rear Wheels Check which applies
GMC G35	Years	1975–1978	Submodels	Magnavan, Rally, Rally Camper Special, Rally STX, Vandura, Vandura Special	Position	Rear	Drive / body / engine	All	Notes	Class C With Dual Rear Wheels Check which applies
GMC G3500	Years	1996	Submodels	Magnavan, Rally, Rally Camper Special, Rally STX, Vandura, Vandura Special	Position	Rear	Drive / body / engine	All	Notes	With Dual Rear Wheels
GMC G3500	Years	1989–1995	Submodels	Magnavan, Rally, Rally Camper Special, Rally STX, Vandura, Vandura Special	Position	Rear	Drive / body / engine	All	Notes	Class C With Dual Rear Wheels Check which applies
GMC G3500	Years	1985–1988	Submodels	Magnavan, Rally, Rally Camper Special, Rally Custom, Rally STX, Vandura, Vandura Special	Position	Rear	Drive / body / engine	All	Notes	Class C With Dual Rear Wheels With Dual Rear Wheels Check which applies
GMC G3500	Years	1983–1984	Submodels	Magnavan, Rally, Rally Camper Special, Rally Custom, Rally STX, Vandura, Vandura Special	Position	Rear	Drive / body / engine	All	Notes	Class C With Dual Rear Wheels Check which applies
GMC G3500	Years	1981–1982	Submodels	Magnavan, Rally, Rally Camper Special, Rally Custom, Rally STX, Vandura, Vandura Special	Position	Rear	Drive / body / engine	All	Notes	Class C With Dual Rear Wheels With Dual Rear Wheels Check which applies
GMC G3500	Years	1979–1980	Submodels	Magnavan, Rally, Rally Camper Special, Rally STX, Vandura, Vandura Special	Position	Rear	Drive / body / engine	All	Notes	Class C With Dual Rear Wheels Check which applies

Specifications

As Bilstein publishes them.

Extended Length (in): 24.45
Collapsed Length (in): 15.04
Extended Length (mm): 621.0
Collapsed Length (mm): 382.0
Upper Mount Type: Eye 12.7mm
Lower Mount Type: Eye 12.7mm
Internal Design: Monotube
Finish: Yellow Paint
Boot Included: Blue Straight
Spring Seat Included: No
Chassis Manufacturer: General Motors
Chassis Model: G Series
Chassis Model - Extended: G30/G3500
Chassis Class: C
Chassis Year Range: 1975-1996
Position: Rear

Installation & warranty

Bilstein general installation instructions (PDF)

Limited Lifetime Warranty · Warranty terms (PDF)

100% genuine Bilstein, from authorized North American distribution.
