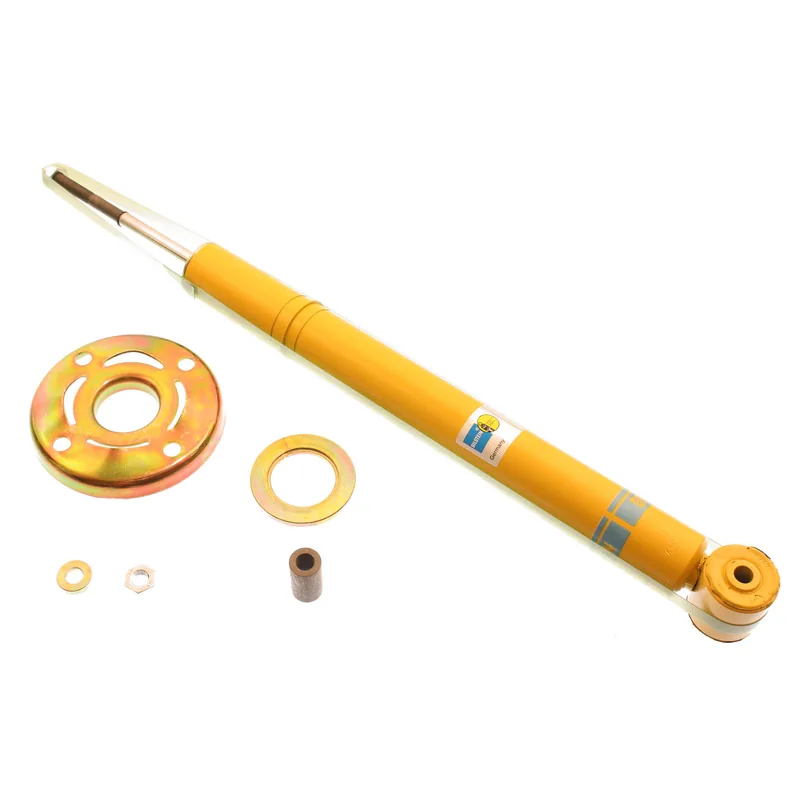

Bilstein 24-006552 Motorsports Shock Absorber
Sold each · 2 per axle
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
- Country of origin
- Germany
- Box
- Ships in Bilstein's own box (about 69 × 11 × 11 cm, 3 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
24 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| Volkswagen Golf | 1990–1992 | GL, GTI 16-Valve, GTI 8-Valve | Rear | All |
|
| Volkswagen Golf | 1989 | Base, GL, GTI 16-Valve | Rear | All |
|
| Volkswagen Golf | 1988 | Base, GL, GT, GTI 16-Valve | Rear | All |
|
| Volkswagen Golf | 1987 | GL, GT, GTI, GTI 16-Valve | Rear | All |
|
| Volkswagen Golf | 1985–1986 | Base, GTI | Rear | All |
|
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 24.70
- Collapsed Length (in)
- 16.61
- Extended Length (mm)
- 627.5
- Collapsed Length (mm)
- 422.0
- Piston Diameter
- 36mm
- Shaft Diameter
- 11mm
- Upper Mount Type
- Stem
- Lower Mount Type
- Eye 10.2mm
- Body Design
- Smooth Body (Non-Coilover)
- Internal Design
- Monotube
- Finish
- Yellow Paint
- Adjustable Damping
- Non-Adjustable
- Boot Included
- No
- Spring Seat Included
- Yes
- Valve Code
- N/A
- Stroke/travel Length (in)
- 8.09
- Compression @0.52m/s
- 905
- Rebound @0.52m/s
- 2280
- Body Material
- Steel
- Spring Hardware
- N/A
- Piston Type
- Linear
- Base Valve
- No
- Service Type
- Factory Rebuildable
- Position
- Rear
- Racing Type
- Road Race
- Stroke/travel Length (in) Rounded
- 8
Installation & warranty
Bilstein installation instructions (PDF)
Limited 90-Day Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
