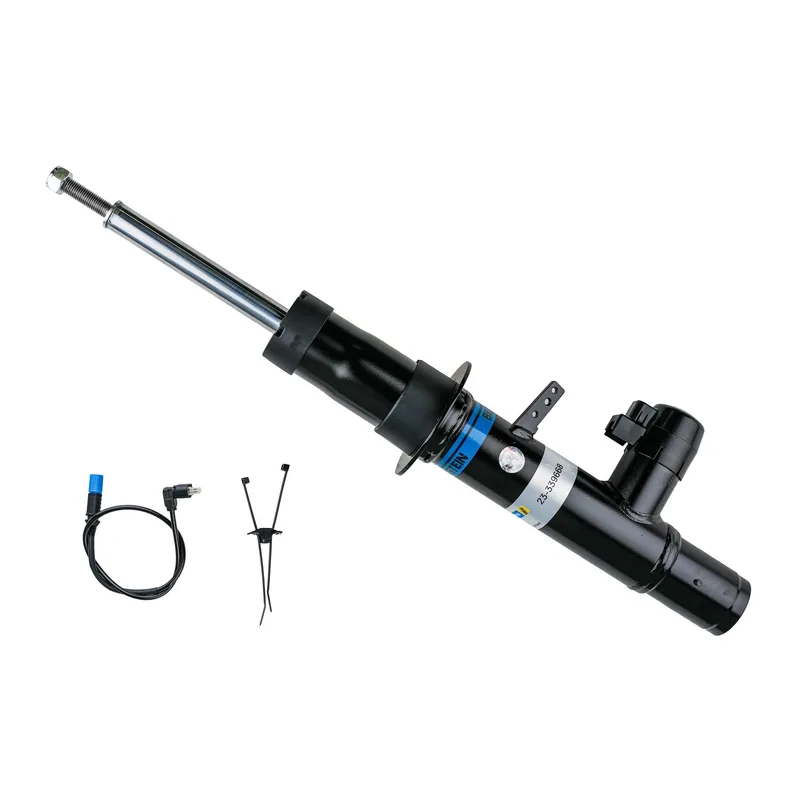

Bilstein 23-339668 B4 OE Replacement DampTronic Strut Assembly
Sold each
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
Matching part for the other side
- Replaces OE
- BMW 37 10 6 875 084, BMW 37 11 6 863 174
- Country of origin
- Germany
- Box
- Ships in Bilstein's own box (about 65 × 20 × 16 cm, 7.3 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
38 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| BMW X5 | 2016–2018 | sDrive35i, xDrive35d, xDrive35i, xDrive40e, xDrive50i | Front right | All |
|
| BMW X5 | 2014–2015 | sDrive35i, xDrive35d, xDrive35i, xDrive50i | Front right | All |
|
| BMW X6 | 2015–2019 | sDrive35i, xDrive35i, xDrive50i | Front right | All |
|
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 22.2
- Collapsed Length (in)
- 17.16
- Extended Length (mm)
- 564.0
- Collapsed Length (mm)
- 436.0
- Upper Mount Type
- Stem
- Lower Mount Type
- Base Cup
- Internal Design
- Twintube
- Finish
- Black Paint
- Boot Included
- No
- Spring Seat Included
- Yes - Fixed
Installation & warranty
Bilstein installation instructions (PDF)
Limited Lifetime Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
