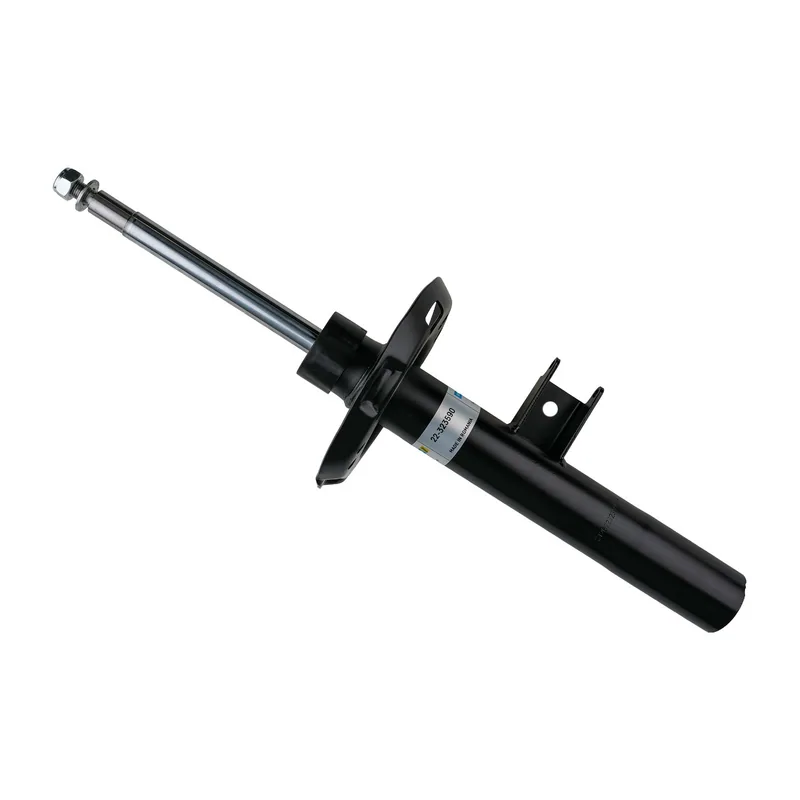

Bilstein 22-323590 B4 OE Replacement Strut Assembly
Sold each
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
Matching part for the other side
- 22-323583 B4 OE Replacement Strut Assembly (Front left)
- Replaces OE
- Mercedes-Benz 247 323 70 00, Mercedes-Benz 247 323 72 00
- Country of origin
- Romania
- Box
- Ships in Bilstein's own box (about 61 × 20 × 16 cm, 4.9 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
22 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| Mercedes-Benz GLA250 | 2021–2025 | 4Matic, Base | Front right | All |
|
| Mercedes-Benz GLB250 | 2020–2025 | 4Matic, Base | Front right | All |
|
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 20.87
- Collapsed Length (in)
- 14.17
- Extended Length (mm)
- 530.0
- Collapsed Length (mm)
- 360.0
- Upper Mount Type
- Stem
- Lower Mount Type
- Base Cup
- Internal Design
- Twintube
- Finish
- Black Paint
- Boot Included
- No
- Spring Seat Included
- Yes - Fixed
Installation & warranty
Bilstein general installation instructions (PDF)
Limited Lifetime Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
