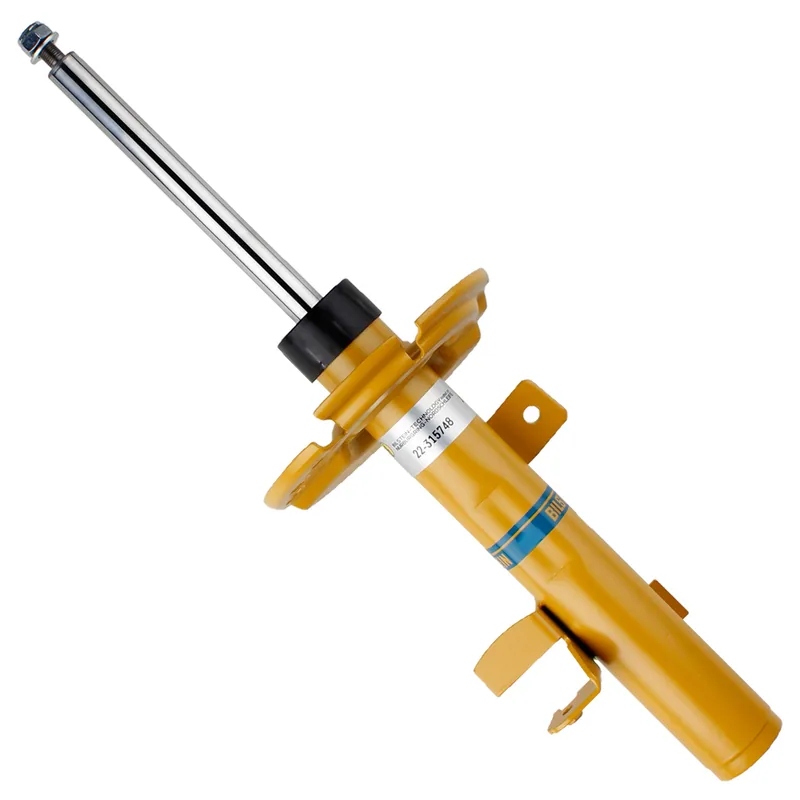

Bilstein 22-315748 B6 Performance Strut Assembly
Sold each
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
Matching part for the other side
- 22-315755 B6 Performance Strut Assembly (Front right)
- 22-293732 B6 Performance Strut Assembly (Front right)
- Replaces OE
- Ford CV6Z 18124-AN, Ford CV6Z 18124-AP, Ford CV6Z 18124-AV, Ford CV6Z 18124-AZ
- Country of origin
- Romania
- Box
- Ships in Bilstein's own box (about 58 × 20 × 16 cm, 4.9 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
20 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| Ford Escape | 2018–2019 | S, SE, SEL, Titanium | Front left | All | — |
| Ford Escape | 2015–2017 | S, SE, Titanium | Front left | All | — |
| Ford Escape | 2014 | S, SE, Titanium | Front left | All |
|
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 19.33
- Collapsed Length (in)
- 12.40
- Extended Length (mm)
- 491.0
- Collapsed Length (mm)
- 315.0
- Upper Mount Type
- Stem
- Lower Mount Type
- Base Cup
- Internal Design
- Twintube
- Finish
- Yellow Paint
- Boot Included
- No
- Spring Seat Included
- Yes - Fixed
Installation & warranty
Bilstein installation instructions (PDF)
Limited Lifetime Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
