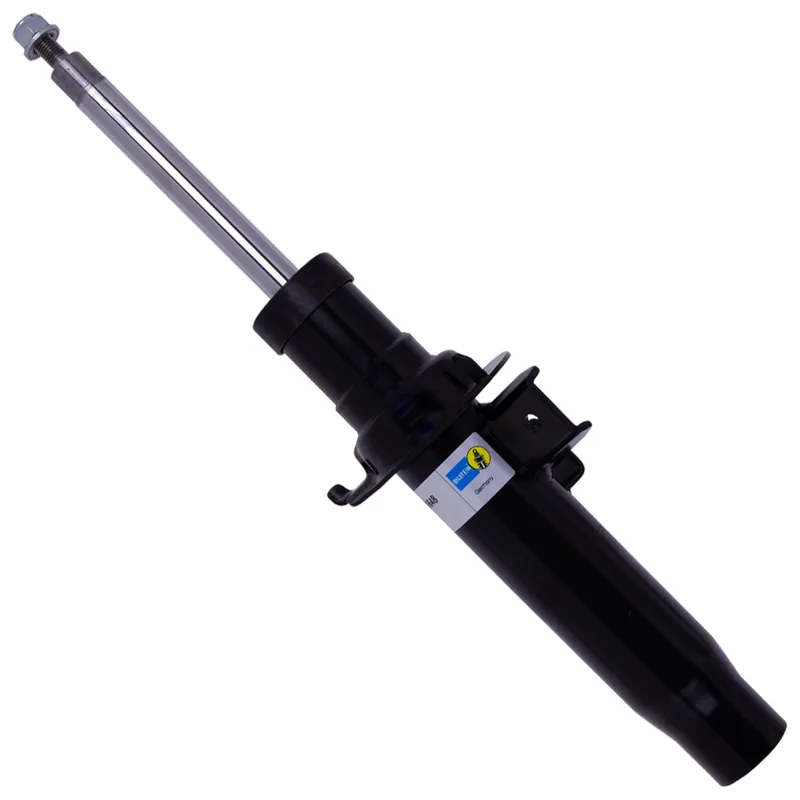

Bilstein 22-309648 B4 OE Replacement Strut Assembly
Sold each
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
Matching part for the other side
- 22-309631 B4 OE Replacement Strut Assembly (Front left)
- 22-304438 B4 OE Replacement Strut Assembly (Front left)
- Replaces OE
- BMW 31 31 6 879 194, Toyota 48510-WAA04
- Country of origin
- Romania
- Box
- Ships in Bilstein's own box (about 60 × 20 × 16 cm, 4.1 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
28 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| BMW Z4 | 2019–2026 | sDrive30i | Front right | All |
|
| Toyota GR Supra | 2026 | Base, MkV Final Edition, Premium | Front right | All |
|
| Toyota GR Supra | 2025 | Base, Premium | Front right | All |
|
| Toyota GR Supra | 2024 | 45th Anniversary Edition, Base, Premium | Front right | All |
|
| Toyota GR Supra | 2023 | A91-MT Edition, Base, Premium | Front right | All |
|
| Toyota GR Supra | 2021–2022 | A91 Edition, Base, Premium | Front right | All |
|
| Toyota GR Supra | 2020 | Base, Launch Edition, Premium | Front right | All |
|
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 20.26
- Collapsed Length (in)
- 14.27
- Extended Length (mm)
- 514.5
- Collapsed Length (mm)
- 362.5
- Upper Mount Type
- Stem
- Lower Mount Type
- Base Cup
- Internal Design
- Twintube
- Finish
- Black Paint
- Boot Included
- No
- Spring Seat Included
- Yes - Fixed
- Position
- Front Right
Installation & warranty
Bilstein general installation instructions (PDF)
Limited Lifetime Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
BILSTEIN is a trademark of thyssenkrupp Bilstein GmbH. Eskimo is an independent retailer.
