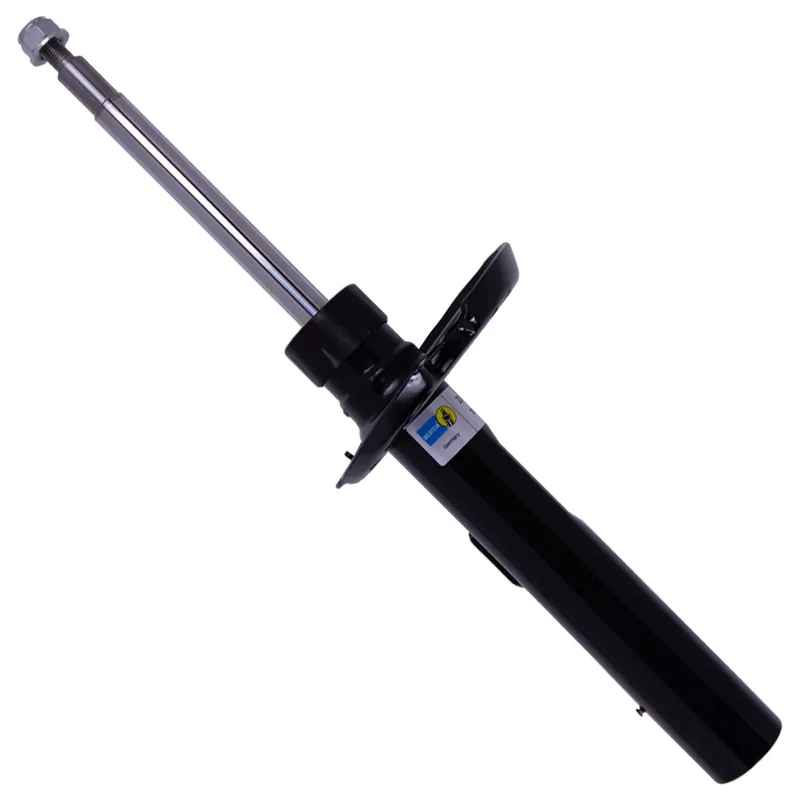

Bilstein 22-302748 B4 OE Replacement Strut Assembly
Sold each
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
Matching part for the other side
- 22-302731 B4 OE Replacement Strut Assembly (Front left)
- 22-306692 B4 OE Replacement Strut Assembly (Front left)
- Replaces OE
- Mercedes-Benz 177 323 02 00
- Country of origin
- Romania
- Box
- Ships in Bilstein's own box (about 58 × 20 × 16 cm, 4.4 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
8 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| Mercedes-Benz A220 | 2019–2022 | 4Matic, Base | Front right | All |
|
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 19.57
- Collapsed Length (in)
- 12.60
- Extended Length (mm)
- 497.0
- Collapsed Length (mm)
- 320.0
- Upper Mount Type
- Stem
- Lower Mount Type
- Base Cup
- Internal Design
- Twintube
- Finish
- Black Paint
- Boot Included
- No
- Spring Seat Included
- Yes - Fixed
Installation & warranty
Bilstein general installation instructions (PDF)
Limited Lifetime Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
