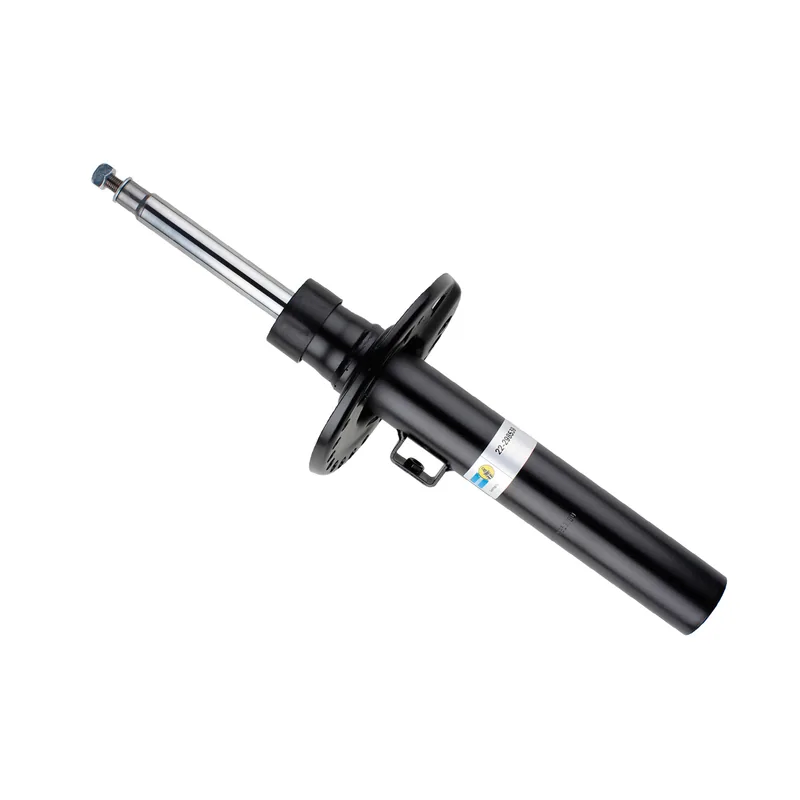

Bilstein 22-298539 B4 OE Replacement Strut Assembly
Sold each
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
Matching part for the other side
- 22-298560 B4 OE Replacement Strut Assembly (Front right)
- Replaces OE
- BMW 31 30 6 890 943, BMW 31 31 6 871 779, BMW 31 31 6 871 781
- Country of origin
- Romania
- Box
- Ships in Bilstein's own box (about 69 × 20 × 16 cm, 5.3 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
22 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| BMW X3 | 2022–2024 | sDrive30i, xDrive30i | Front left | All |
|
| BMW X3 | 2020–2021 | sDrive30i, xDrive30e, xDrive30i | Front left | All |
|
| BMW X3 | 2019 | sDrive30i, xDrive30i | Front left | All |
|
| BMW X3 | 2018 | xDrive30i | Front left | All |
|
| BMW X4 | 2019–2025 | xDrive30i | Front left | All |
|
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 23.68
- Collapsed Length (in)
- 16.18
- Extended Length (mm)
- 601.5
- Collapsed Length (mm)
- 411.0
- Upper Mount Type
- Stem
- Lower Mount Type
- Base Cup
- Internal Design
- Twintube
- Finish
- Black Paint
- Boot Included
- No
- Spring Seat Included
- Yes - Fixed
Installation & warranty
Bilstein general installation instructions (PDF)
Limited Lifetime Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
