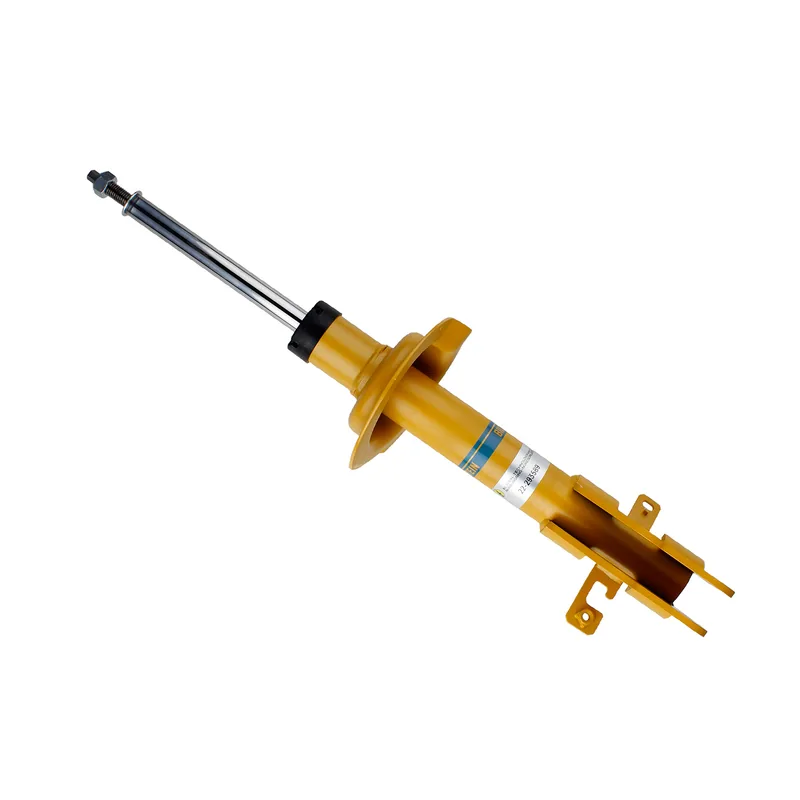

Bilstein 22-293589 B6 Strut Assembly
Sold each
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
Matching part for the other side
- 22-293596 B6 Strut Assembly (Front right)
- Replaces OE
- Ford 8T4Z 18124-DB, Ford 9T4Z 18124-A, Ford 9T4Z 18124-CA, Ford 9T4Z 18124-E, Ford BT4Z 18124-C, Ford BT4Z 18124-EC, Ford CT4Z 18124-A
- Country of origin
- Romania
- Box
- Ships in Bilstein's own box (about 70 × 20 × 16 cm, 6.2 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
24 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| Ford Edge | 2009–2014 | Limited, SE, SEL, Sport | Front left | All | — |
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 24.13
- Collapsed Length (in)
- 16.57
- Extended Length (mm)
- 613.0
- Collapsed Length (mm)
- 421.0
- Upper Mount Type
- Stem
- Lower Mount Type
- Bracket
- Internal Design
- Twintube
- Finish
- Yellow Paint
- Reservoir
- No
- Adjustable Damping
- Non-Adjustable
- Boot Included
- No
- Spring Seat Included
- Yes - Fixed
Installation & warranty
Bilstein general installation instructions (PDF)
Limited Lifetime Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
