BetterB6 Performance

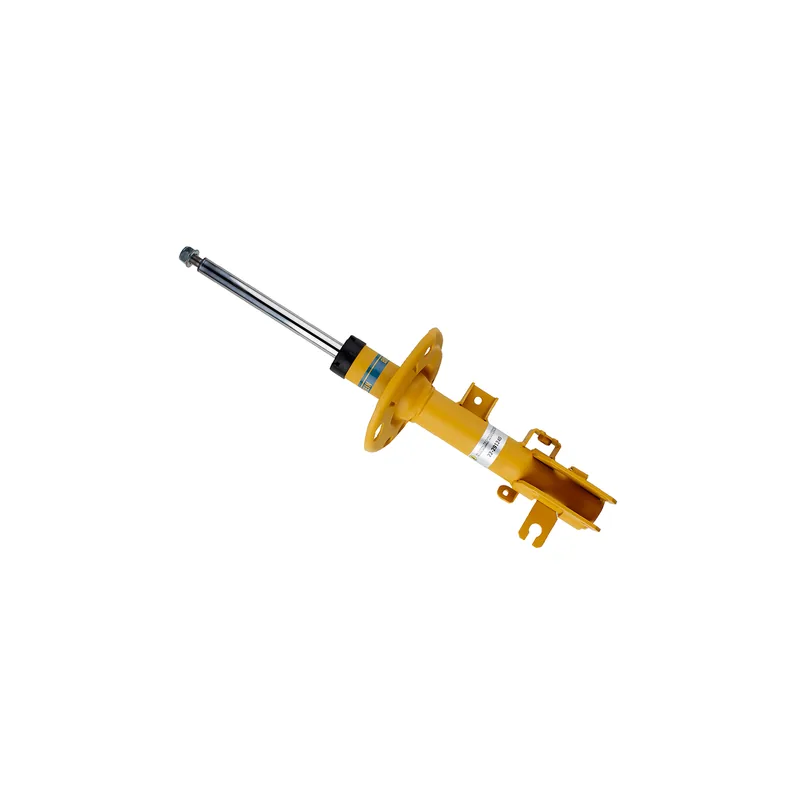

Bilstein 22-291240 B6 Strut Assembly
Sold each
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
Matching part for the other side
- 22-291257 B6 Strut Assembly (Front right)
- Replaces OE
- Mazda KB7W-34-900B, Mazda KN3L-34-900B, Mazda KN4C-34-900B, Mazda KPF9-34-900
- Country of origin
- Romania
- Box
- Ships in Bilstein's own box (about 68 × 20 × 16 cm, 5.5 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
36 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| Mazda CX-5 | 2022–2024 | 2.5 S, 2.5 S Carbon Edition, 2.5 Turbo, 2.5 Turbo Signature | Front left | All | — |
| Mazda CX-5 | 2021 | Carbon Edition, Carbon Edition Turbo, Grand Touring, Grand Touring Reserve, Signature, Sport, Touring | Front left | All | — |
| Mazda CX-5 | 2019–2020 | Grand Touring, Grand Touring Reserve, Signature, Sport, Touring | Front left | All | — |
| Mazda CX-5 | 2018 | Grand Touring, Sport, Touring | Front left | All | — |
| Mazda CX-5 | 2017 | Grand Select, Grand Touring, Sport, Touring | Front left | All | — |
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 23.62
- Collapsed Length (in)
- 16.08
- Extended Length (mm)
- 600.0
- Collapsed Length (mm)
- 408.5
- Upper Mount Type
- Stem
- Lower Mount Type
- Clevis
- Internal Design
- Twintube
- Finish
- Yellow Paint
- Reservoir
- No
- Adjustable Damping
- Non-Adjustable
- Boot Included
- No
- Spring Seat Included
- Yes - Fixed
Installation & warranty
Bilstein general installation instructions (PDF)
Limited Lifetime Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
