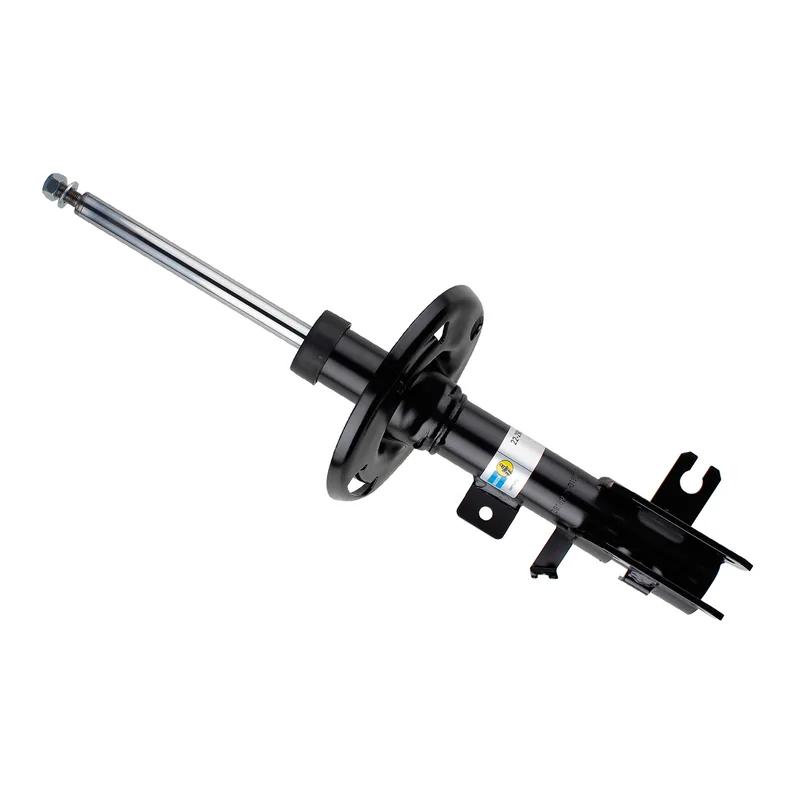

Bilstein 22-290182 B4 OE Replacement Strut Assembly
Sold each
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
Matching part for the other side
- 22-263971 B4 OE Replacement Strut Assembly (Front left)
- Replaces OE
- Mazda DB4G-34-700A, Mazda DD5D-34-700A, Mazda DH1G-34-700A, Mazda DH5C-34-700A
- Country of origin
- Romania
- Box
- Ships in Bilstein's own box (about 63 × 20 × 16 cm, 4.6 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
14 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| Mazda CX-3 | 2020–2021 | Sport | Front right | All | — |
| Mazda CX-3 | 2016–2019 | Grand Touring, Sport, Touring | Front right | All | — |
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 51.39
- Collapsed Length (in)
- 16.39
- Extended Length (mm)
- 542.0
- Collapsed Length (mm)
- 415.0
- Upper Mount Type
- Stem
- Lower Mount Type
- Bracket
- Internal Design
- Twintube
- Finish
- Black Paint
- Boot Included
- No
- Spring Seat Included
- Yes - Fixed
Installation & warranty
Bilstein general installation instructions (PDF)
Limited Lifetime Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
BILSTEIN is a trademark of thyssenkrupp Bilstein GmbH. Eskimo is an independent retailer.
