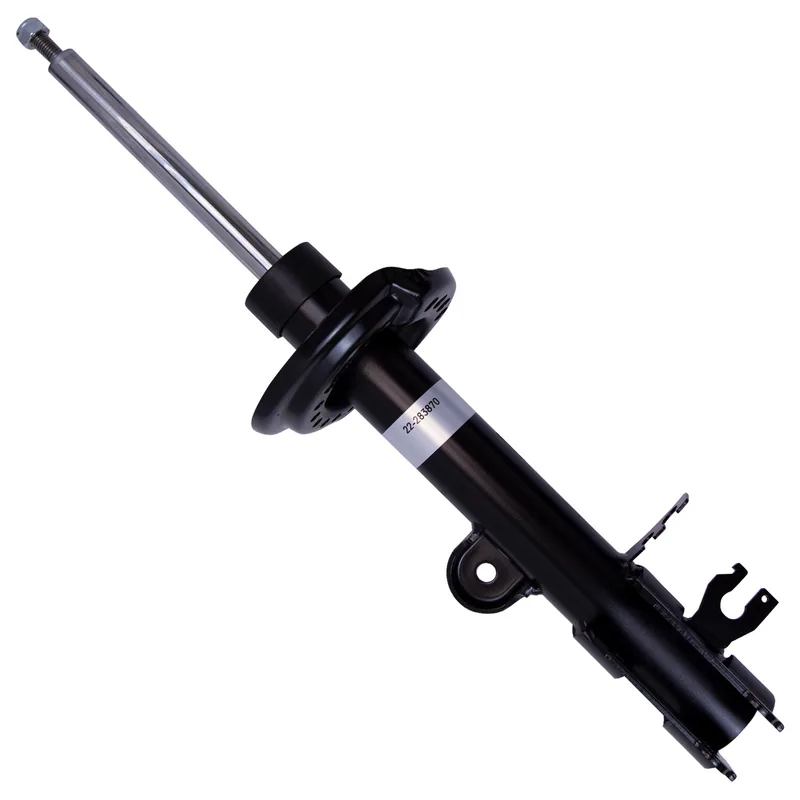

Bilstein 22-283870 B4 OE Replacement Strut Assembly
Sold each
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
Matching part for the other side
- 22-283863 B4 OE Replacement Strut Assembly (Rear left)
- Replaces OE
- Jeep 68252482AB
- Country of origin
- Romania
- Box
- Ships in Bilstein's own box (about 65 × 20 × 16 cm, 5.1 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
5 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| Jeep Compass | 2017–2021 | Trailhawk | Rear right | All | — |
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 22.44
- Collapsed Length (in)
- 16.46
- Extended Length (mm)
- 570.0
- Collapsed Length (mm)
- 418.0
- Upper Mount Type
- Stem
- Lower Mount Type
- Bracket
- Internal Design
- Twintube
- Finish
- Black Paint
- Boot Included
- No
- Spring Seat Included
- Yes - Fixed
Installation & warranty
Bilstein general installation instructions (PDF)
Limited Lifetime Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
