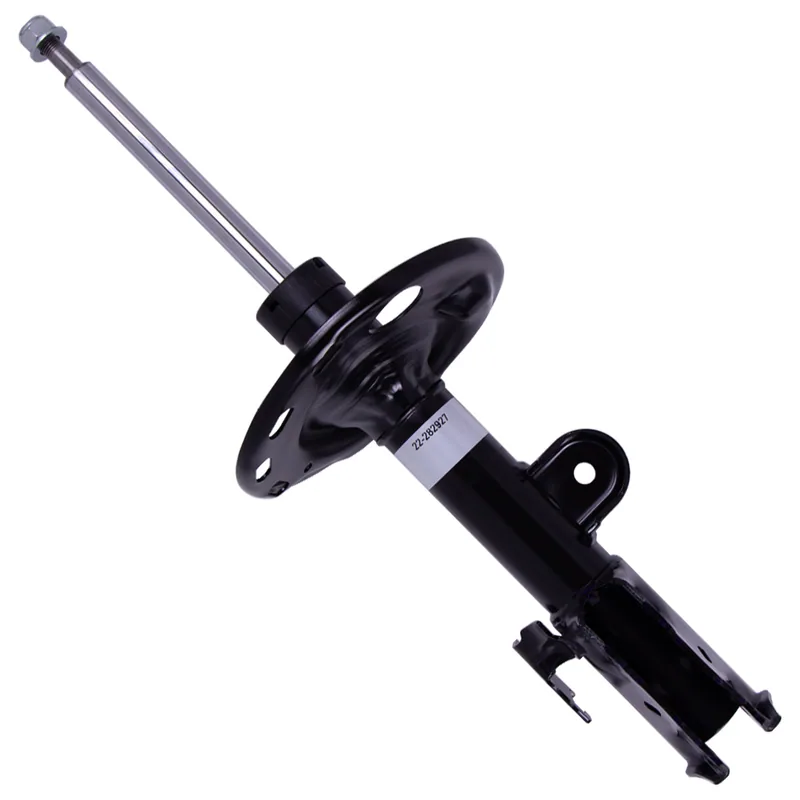

Bilstein 22-282927 B4 OE Replacement Strut Assembly
Sold each
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
Matching part for the other side
- 22-282910 B4 OE Replacement Strut Assembly (Front left)
- Replaces OE
Toyota 48510-09888, Toyota 48510-80598, Toyota 48510-80643, Toyota 48510-80731, Toyota 48510-80794, Toyota 48510-80795 and 3 more
Toyota 48510-80796, Toyota 48510-80818, Toyota 48510-8Z276
- Country of origin
- Romania
- Box
- Ships in Bilstein's own box (about 63 × 20 × 16 cm, 5.5 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
41 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| Lexus NX200t | 2015–2017 | Base | Front right | All |
|
| Lexus NX300 | 2018–2021 | Base | Front right | All |
|
| Toyota RAV4 | 2018 | Adventure, Hybrid Limited, Hybrid SE, Hybrid XLE, LE, Limited, Platinum, SE, XLE | Front right | All | — |
| Toyota RAV4 | 2017 | Hybrid Limited, Hybrid SE, Hybrid XLE, LE, Limited, Platinum, SE, XLE | Front right | All | — |
| Toyota RAV4 | 2016 | Hybrid Limited, Hybrid XLE, LE, Limited, SE, XLE | Front right | All | — |
| Toyota RAV4 | 2015 | LE, Limited, XLE | Front right | All | — |
| Toyota RAV4 | 2013–2014 | EV, LE, Limited, XLE | Front right | All | — |
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 21.52
- Collapsed Length (in)
- 14.55
- Extended Length (mm)
- 546.5
- Collapsed Length (mm)
- 369.5
- Upper Mount Type
- Stem
- Lower Mount Type
- Bracket
- Internal Design
- Twintube
- Finish
- Black Paint
- Boot Included
- N/A
- Spring Seat Included
- Yes - Fixed
Installation & warranty
Bilstein general installation instructions (PDF)
Limited Lifetime Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
