BetterB6 Performance

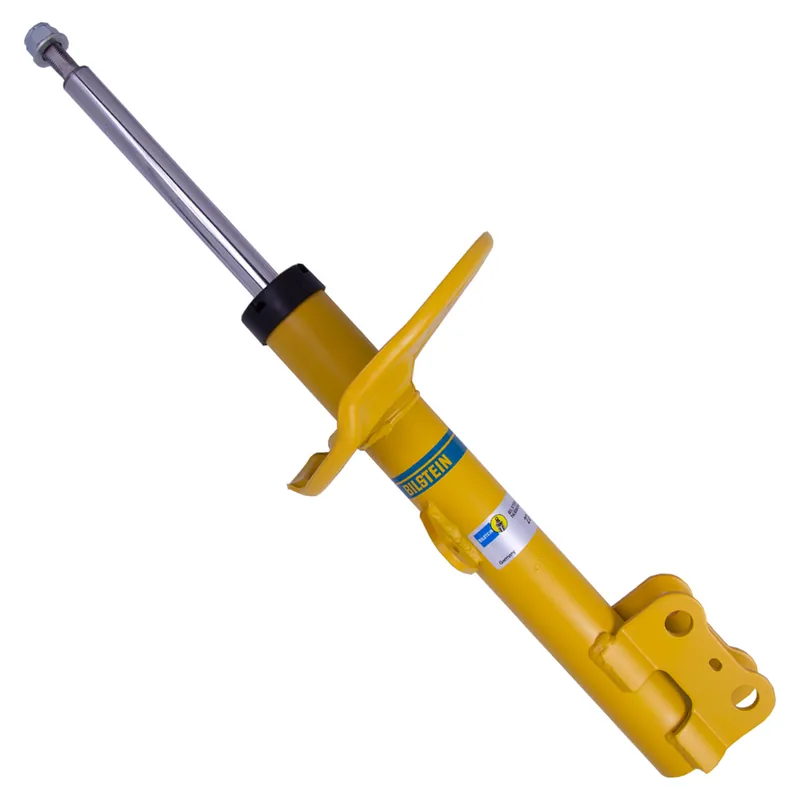

Bilstein 22-282880 B6 Strut Assembly
Sold each
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
Matching part for the other side
- 22-282873 B6 Strut Assembly (Front left)
- Replaces OE
Toyota 48510-8Z103, Toyota 48510-8Z104, Toyota 48510-8Z106, Toyota 48510-8Z278, Toyota 48510-8Z280, Toyota 48510-8Z282 and 3 more
Toyota 48510-8Z306, Toyota 48510-8Z307, Toyota 48510-8Z308
- Country of origin
- Romania
- Box
- Ships in Bilstein's own box (about 67 × 20 × 16 cm, 6.1 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
38 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| Toyota Highlander | 2019 | Hybrid LE, Hybrid Limited, Hybrid XLE, LE, Limited, SE, XLE | Front right | All | — |
| Toyota Highlander | 2017–2018 | Hybrid LE, Hybrid Limited, Hybrid XLE, LE, LE Plus, Limited, SE, XLE | Front right | All | — |
| Toyota Highlander | 2014–2016 | Hybrid Limited, LE, LE Plus, Limited, XLE | Front right | All | — |
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 23.13
- Collapsed Length (in)
- 15.96
- Extended Length (mm)
- 587.5
- Collapsed Length (mm)
- 405.5
- Upper Mount Type
- Stem
- Lower Mount Type
- Bracket
- Internal Design
- Twintube
- Finish
- Yellow Paint
- Reservoir
- No
- Adjustable Damping
- Non-Adjustable
- Boot Included
- No
- Spring Seat Included
- Yes - Fixed
Installation & warranty
Bilstein general installation instructions (PDF)
Limited Lifetime Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
BILSTEIN is a trademark of thyssenkrupp Bilstein GmbH. Eskimo is an independent retailer.
