BetterB6 Performance

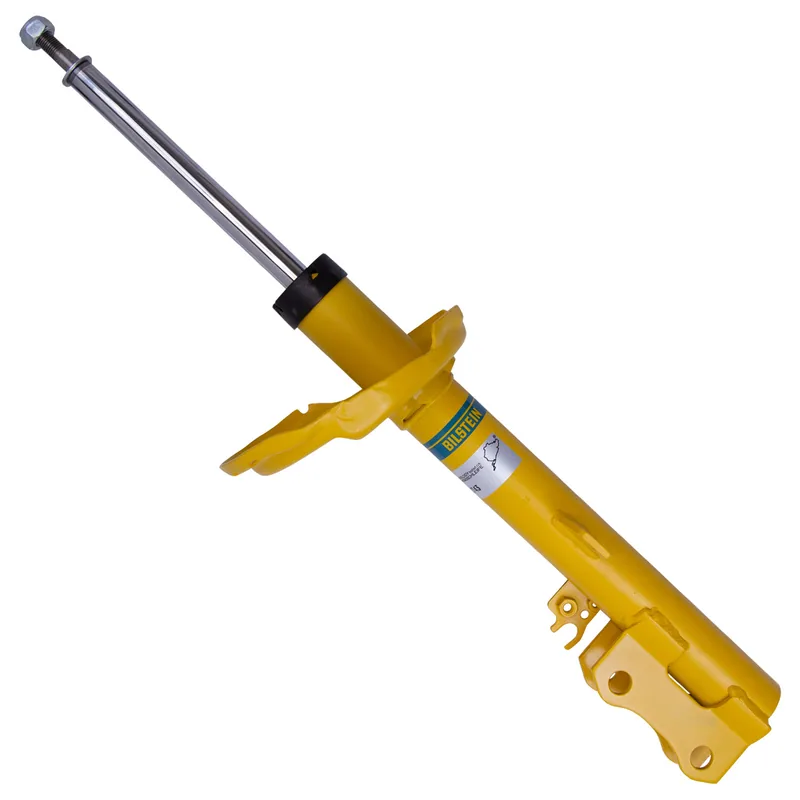

Bilstein 22-282743 B6 Strut Assembly
Sold each
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
Matching part for the other side
- 22-282750 B6 Strut Assembly (Rear right)
- 22-282774 B6 Strut Assembly (Rear right)
- Replaces OE
- Toyota 48540-49516, Toyota 48540-80004, Toyota 48540-80005, Toyota 48540-A9370, Toyota 48540-A9380
- Country of origin
- Romania
- Box
- Ships in Bilstein's own box (about 75 × 20 × 16 cm, 6.6 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
20 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| Toyota Highlander | 2013 | Base, Limited, Plus, SE | Rear left | FWD | — |
| Toyota Highlander | 2011–2012 | Base, Limited, SE | Rear left | FWD | — |
| Toyota Highlander | 2010 | Base, Limited, SE, Sport | Rear left | FWD | — |
| Toyota Highlander | 2008–2009 | Base, Limited, Sport | Rear left | FWD | — |
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 26.30
- Collapsed Length (in)
- 18.15
- Extended Length (mm)
- 668.0
- Collapsed Length (mm)
- 461.0
- Upper Mount Type
- Stem
- Lower Mount Type
- Bracket
- Internal Design
- Twintube
- Finish
- Black Paint
- Reservoir
- No
- Adjustable Damping
- Non-Adjustable
- Boot Included
- No
- Spring Seat Included
- Yes - Fixed
Installation & warranty
Bilstein general installation instructions (PDF)
Limited Lifetime Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
