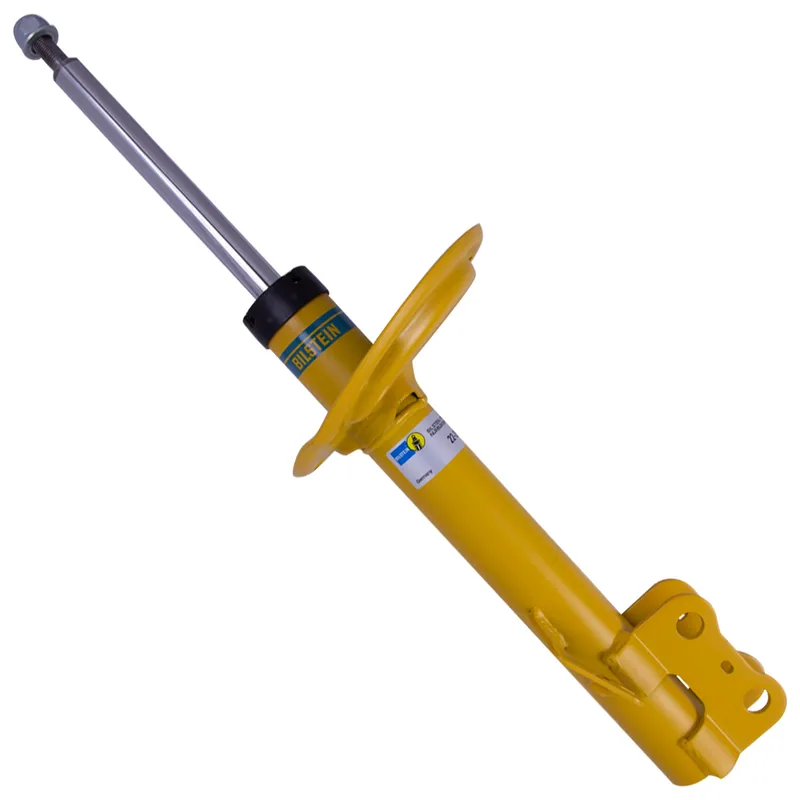

Bilstein 22-282729 B6 Strut Assembly
Sold each
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
Matching part for the other side
- 22-282736 B6 Strut Assembly (Front right)
- Replaces OE
- Toyota 48520-80258, Toyota 48520-80330, Toyota 48520-A9580, Toyota 48520-A9590
- Country of origin
- Romania
- Box
- Ships in Bilstein's own box (about 69 × 20 × 16 cm, 5.7 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
22 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| Toyota Highlander | 2013 | Base, Hybrid, Hybrid Limited, Limited, Plus, SE | Front left | All | — |
| Toyota Highlander | 2012 | Base, Hybrid, Hybrid Limited, Limited, SE | Front left | All | — |
| Toyota Highlander | 2011 | Base, Hybrid, Hybrid Limited, Limited, SE | Front left | All |
|
| Toyota Highlander | 2010 | Base, Hybrid, Hybrid Limited, Limited, SE, Sport | Front left | All |
|
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 23.78
- Collapsed Length (in)
- 15.96
- Extended Length (mm)
- 604.0
- Collapsed Length (mm)
- 405.5
- Upper Mount Type
- Stem
- Lower Mount Type
- Bracket
- Internal Design
- Twintube
- Finish
- Black Paint
- Reservoir
- No
- Adjustable Damping
- Non-Adjustable
- Boot Included
- No
- Spring Seat Included
- Yes - Fixed
Installation & warranty
Bilstein general installation instructions (PDF)
Limited Lifetime Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
