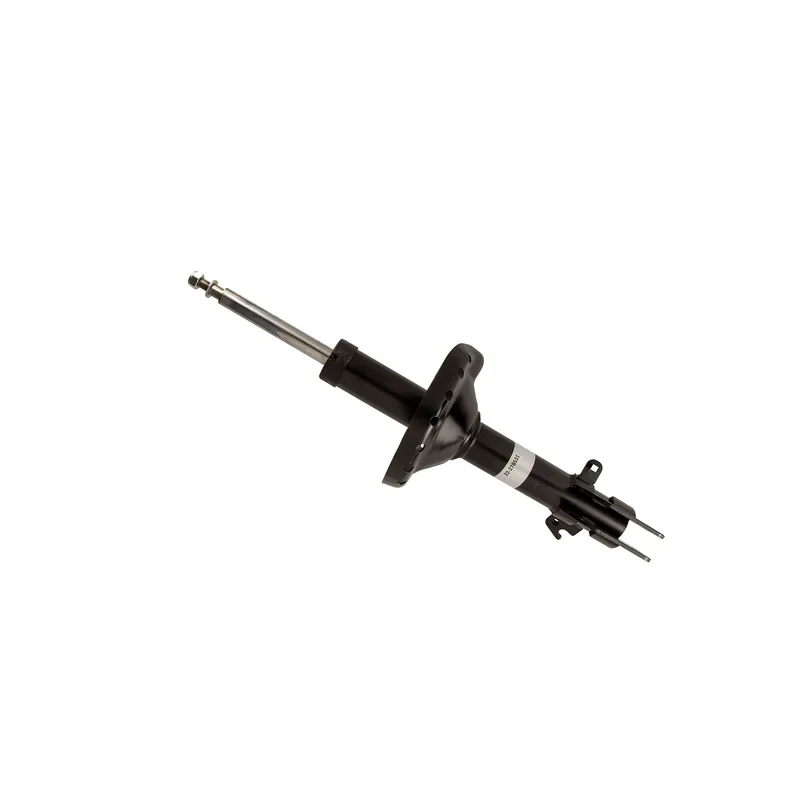

Bilstein 22-278531 B4 OE Replacement Strut Assembly
Sold each
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
Matching part for the other side
- 22-278524 B4 OE Replacement Strut Assembly (Front left)
- Replaces OE
- Subaru 20310 AJ04A, Subaru 20310 AJ04B, Subaru 20310 AJ10A
- Country of origin
- Romania
- Box
- Ships in Bilstein's own box (about 64 × 20 × 16 cm, 5.7 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
27 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| Subaru Outback | 2014 | 2.5i, 2.5i Limited, 2.5i Premium, 3.6R Limited | Front right | All | — |
| Subaru Outback | 2013 | 2.5i, 2.5i Limited, 2.5i Premium, 3.6R, 3.6R Limited | Front right | All | — |
| Subaru Outback | 2010–2012 | 2.5i, 2.5i Limited, 2.5i Premium, 3.6R, 3.6R Limited, 3.6R Premium | Front right | All | — |
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 21.97
- Collapsed Length (in)
- 15.87
- Extended Length (mm)
- 558.0
- Collapsed Length (mm)
- 403.0
- Upper Mount Type
- Stem
- Lower Mount Type
- Base Cup
- Internal Design
- Twintube
- Finish
- Black Paint
- Boot Included
- No
- Spring Seat Included
- Yes - Fixed
Installation & warranty
Bilstein general installation instructions (PDF)
Limited Lifetime Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
