BetterB6 Performance

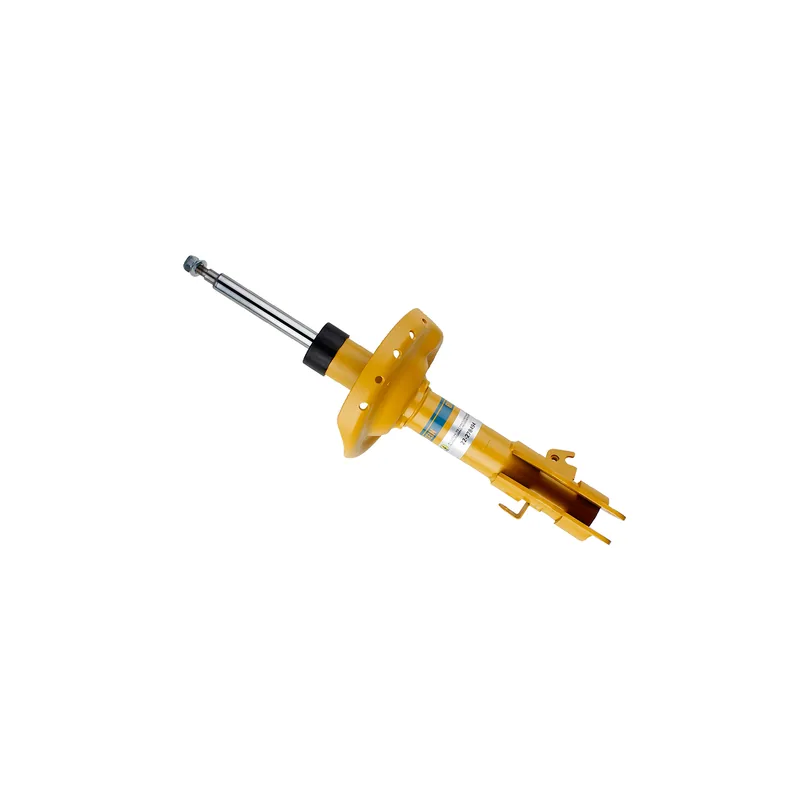

Bilstein 22-278494 B6 Strut Assembly
Sold each
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
Matching part for the other side
- 22-278500 B6 Strut Assembly (Front right)
- Replaces OE
- Subaru 20310 SG010, Subaru 20310 SG011, Subaru 20310 SG030
- Country of origin
- Romania
- Box
- Ships in Bilstein's own box (about 63 × 20 × 16 cm, 5.7 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
30 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| Subaru Forester | 2014–2018 | 2.0XT Premium, 2.0XT Touring, 2.5i, 2.5i Limited, 2.5i Premium, 2.5i Touring | Front left | All | — |
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 21.65
- Collapsed Length (in)
- 15.47
- Extended Length (mm)
- 550.0
- Collapsed Length (mm)
- 393.0
- Upper Mount Type
- Stem
- Lower Mount Type
- Bracket
- Internal Design
- Twintube
- Finish
- Yellow Paint
- Reservoir
- No
- Adjustable Damping
- Non-Adjustable
- Boot Included
- No
- Spring Seat Included
- Yes - Fixed
Installation & warranty
Bilstein general installation instructions (PDF)
Limited Lifetime Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
