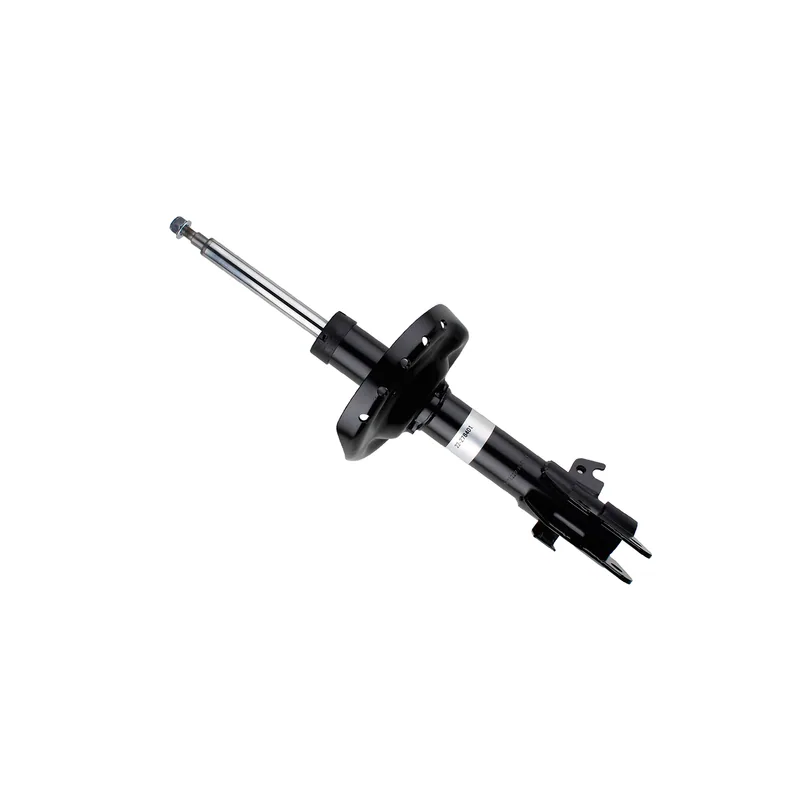

Bilstein 22-278401 B4 OE Replacement Strut Assembly
Sold each
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
Matching part for the other side
- 22-278418 B4 OE Replacement Strut Assembly (Front right)
- Replaces OE
- Subaru 20310 SC110, Subaru 20310 SC111, Subaru 20310 SC112
- Country of origin
- Romania
- Box
- Ships in Bilstein's own box (about 47 × 20 × 16 cm, 5 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
28 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| Subaru Forester | 2011–2013 | X, X Limited, X Premium, X Touring, XT Premium, XT Touring | Front left | All | — |
| Subaru Forester | 2010 | X, X Limited, X Premium, XT Limited, XT Premium | Front left | All | — |
| Subaru Forester | 2009 | X, X Limited, X Premium, XT, XT Limited | Front left | All | — |
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 15.02
- Collapsed Length (in)
- 21.22
- Extended Length (mm)
- 381.5
- Collapsed Length (mm)
- 539.0
- Upper Mount Type
- Stem
- Lower Mount Type
- Bracket
- Internal Design
- Twintube
- Finish
- Black Paint
- Boot Included
- No
- Spring Seat Included
- Yes - Fixed
Installation & warranty
Bilstein general installation instructions (PDF)
Limited Lifetime Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
BILSTEIN is a trademark of thyssenkrupp Bilstein GmbH. Eskimo is an independent retailer.
