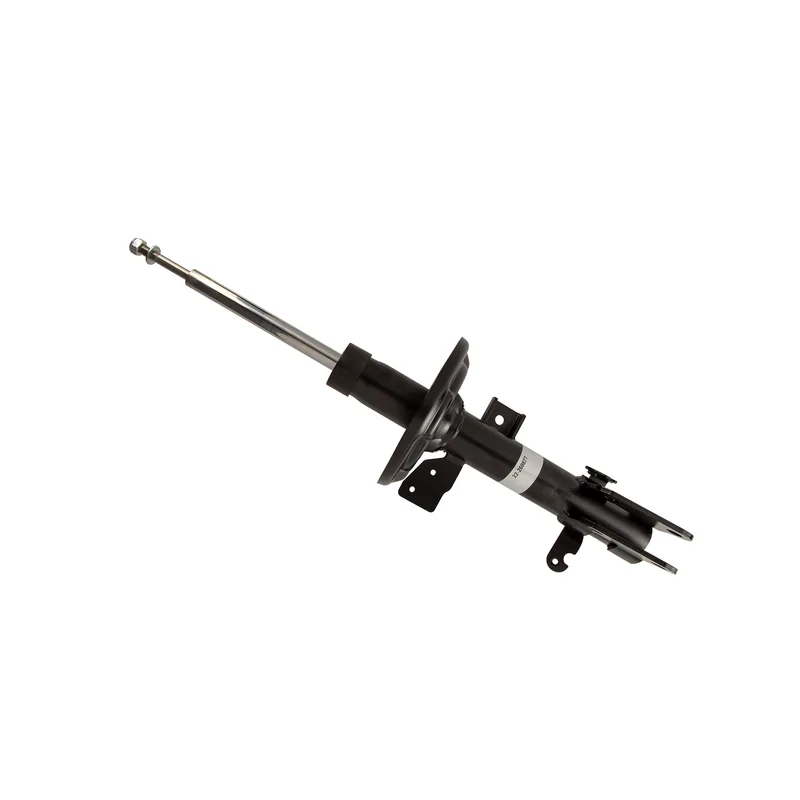

Bilstein 22-268877 B4 OE Replacement Strut Assembly
Sold each
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
Matching part for the other side
- 22-268884 B4 OE Replacement Strut Assembly (Front right)
- Replaces OE
- Honda 51606-SZA-A02
- Country of origin
- Romania
- Box
- Ships in Bilstein's own box (about 64 × 20 × 16 cm, 6.9 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
29 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| Honda Pilot | 2015 | EX, EX-L, LX, SE, Touring | Front left | All | — |
| Honda Pilot | 2009–2014 | EX, EX-L, LX, Touring | Front left | All | — |
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 21.85
- Collapsed Length (in)
- 13.87
- Extended Length (mm)
- 555.0
- Collapsed Length (mm)
- 352.5
- Upper Mount Type
- Stem
- Lower Mount Type
- Bracket
- Internal Design
- Twintube
- Finish
- Black Paint
- Boot Included
- No
- Spring Seat Included
- Yes - Fixed
Installation & warranty
Bilstein general installation instructions (PDF)
Limited Lifetime Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
