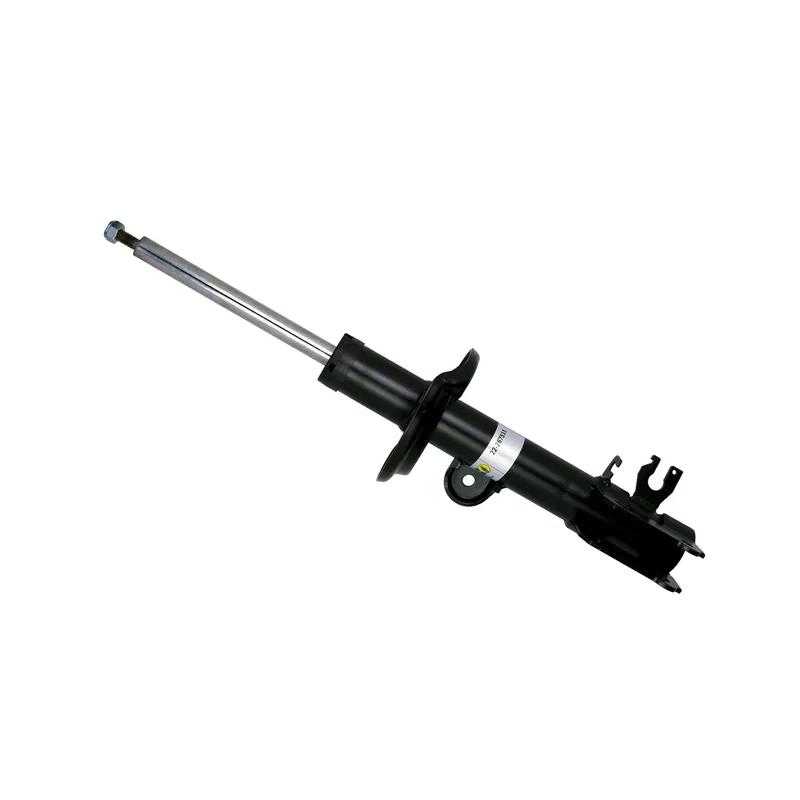

Bilstein 22-267511 B4 OE Replacement Strut Assembly
Sold each
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
Matching part for the other side
- 22-267504 B4 OE Replacement Strut Assembly (Front left)
- 22-261007 B4 OE Replacement Strut Assembly (Front left)
- Replaces OE
- Jeep 68258674AA, Jeep 68268692AA, Jeep 68268848AA, Jeep 68304339AA, Jeep 68304422AA, Jeep 68341027AA
- Country of origin
- Romania
- Box
- Ships in Bilstein's own box (about 67 × 20 × 16 cm, 4.9 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
19 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| Jeep Renegade | 2018 | Altitude, Latitude, Limited, Sport | Front right | AWD | — |
| Jeep Renegade | 2017–2018 | Trailhawk | Front right | All | — |
| Jeep Renegade | 2017 | Latitude, Limited, Sport | Front right | AWD | — |
| Jeep Renegade | 2016 | Dawn Of Justice, Trailhawk | Front right | All | — |
| Jeep Renegade | 2016 | 75th Anniversary, Latitude, Limited, Sport | Front right | AWD | — |
| Jeep Renegade | 2015 | Trailhawk | Front right | All | — |
| Jeep Renegade | 2015 | Latitude, Limited, Sport | Front right | AWD | — |
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 22.91
- Collapsed Length (in)
- 16.22
- Extended Length (mm)
- 584.0
- Collapsed Length (mm)
- 412.0
- Upper Mount Type
- Stem
- Lower Mount Type
- Bracket
- Internal Design
- Twintube
- Finish
- Black Paint
- Boot Included
- No
- Spring Seat Included
- Yes - Fixed
Installation & warranty
Bilstein general installation instructions (PDF)
Limited Lifetime Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
BILSTEIN is a trademark of thyssenkrupp Bilstein GmbH. Eskimo is an independent retailer.
