BetterB6 Performance

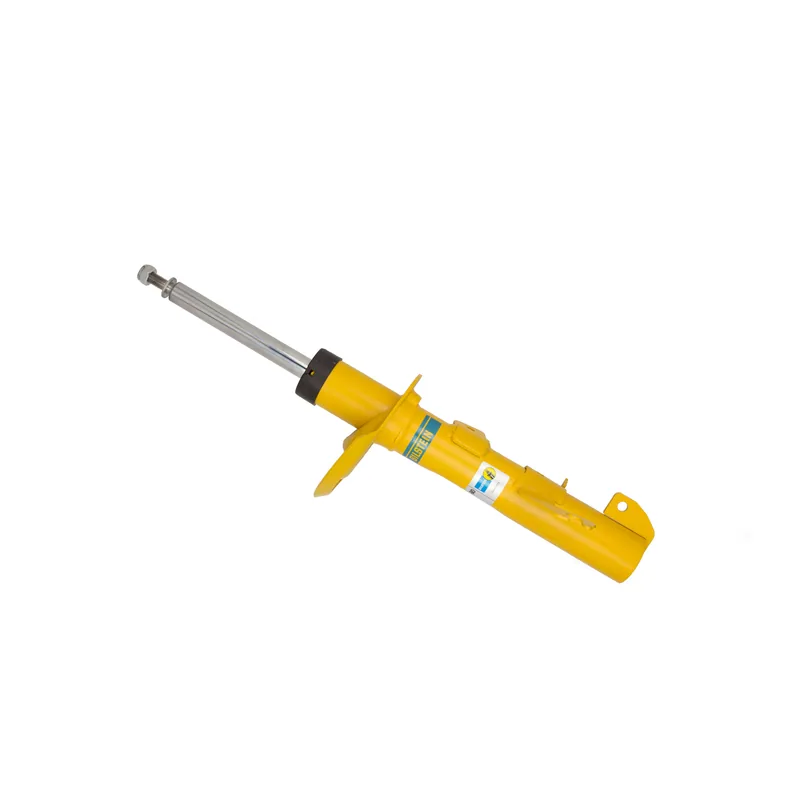

Bilstein 22-266781 B6 Strut Assembly

Sold each

Call (780) 473-2424

We reply to price requests within one business day.

Will it fit your vehicle?

Matching part for the other side

22-266774 B6 Strut Assembly (Front left)
22-249289 B6 Strut Assembly (Front left)
22-249265 B6 Strut Assembly (Front left)

Want it installed?Eskimo Auto Repair installs Bilstein suspension in Edmonton.

Replaces OE: Jeep 5274530AE, Jeep 5274530AF, Jeep 5274532AE, Jeep 5274532AF, Jeep 6838 1242AC, Jeep 6838 1242AD
Country of origin: Romania
Box: Ships in Bilstein's own box (about 58 × 20 × 16 cm, 5.2 kg)

100% genuine Bilstein, from authorized North American distribution.

Fitment

56 vehicles, newest years first

Vehicle	Years	Submodels	Position	Drive / body / engine	Notes
Jeep Cherokee	Years	2023	Submodels	Altitude Lux	Position	Front right	Drive / body / engine	AWD	Notes	With Jeep Active Drive II (4WD) With Off-Road Suspension Check which applies
Jeep Cherokee	Years	2022–2023	Submodels	Trailhawk	Position	Front right	Drive / body / engine	All	Notes	With Jeep Active Drive II (4WD) With Off-Road Suspension Check which applies
Jeep Cherokee	Years	2022	Submodels	Latitude Lux, Limited, X	Position	Front right	Drive / body / engine	AWD	Notes	With Jeep Active Drive II (4WD) With Off-Road Suspension Check which applies
Jeep Cherokee	Years	2021	Submodels	80th Anniversary, Altitude, High Altitude, Latitude, Latitude Lux, Latitude Plus, Limited	Position	Front right	Drive / body / engine	AWD	Notes	With Jeep Active Drive II (4WD) With Off-Road Suspension Check which applies
Jeep Cherokee	Years	2019–2021	Submodels	Trailhawk, Trailhawk Elite	Position	Front right	Drive / body / engine	All	Notes	With Jeep Active Drive II (4WD) With Off-Road Suspension Check which applies
Jeep Cherokee	Years	2020	Submodels	Altitude, High Altitude, Latitude, Latitude Plus, Limited, Overland, Upland	Position	Front right	Drive / body / engine	AWD	Notes	With Jeep Active Drive II (4WD) With Off-Road Suspension Check which applies
Jeep Cherokee	Years	2019	Submodels	Altitude, High Altitude, Latitude, Latitude Plus, Limited, Overland	Position	Front right	Drive / body / engine	AWD	Notes	With Jeep Active Drive II (4WD) With Off-Road Suspension Check which applies
Jeep Cherokee	Years	2017–2018	Submodels	Latitude, Limited, Overland, Sport	Position	Front right	Drive / body / engine	AWD	Notes	With Jeep Active Drive II (4WD) With Off-Road Suspension Check which applies
Jeep Cherokee	Years	2014–2018	Submodels	Trailhawk	Position	Front right	Drive / body / engine	All	Notes	With Jeep Active Drive II (4WD) With Off-Road Suspension Check which applies
Jeep Cherokee	Years	2016	Submodels	75th Anniversary, Latitude, Limited, Overland, Sport	Position	Front right	Drive / body / engine	AWD	Notes	With Jeep Active Drive II (4WD) With Off-Road Suspension Check which applies
Jeep Cherokee	Years	2014–2015	Submodels	Latitude, Limited, Sport	Position	Front right	Drive / body / engine	AWD	Notes	With Jeep Active Drive II (4WD) With Off-Road Suspension Check which applies

Specifications

As Bilstein publishes them.

Extended Length (in): 19.52
Collapsed Length (in): 10.95
Extended Length (mm): 496.0
Collapsed Length (mm): 324.0
Shaft Diameter: 22mm
Upper Mount Type: Stem
Lower Mount Type: Base Cup
Internal Design: Twintube
Finish: Yellow Paint
Reservoir: No
Adjustable Damping: Non-Adjustable
Boot Included: No
Spring Seat Included: Yes - Fixed

Installation & warranty

Bilstein general installation instructions (PDF)

Limited Lifetime Warranty · Warranty terms (PDF)

100% genuine Bilstein, from authorized North American distribution.
