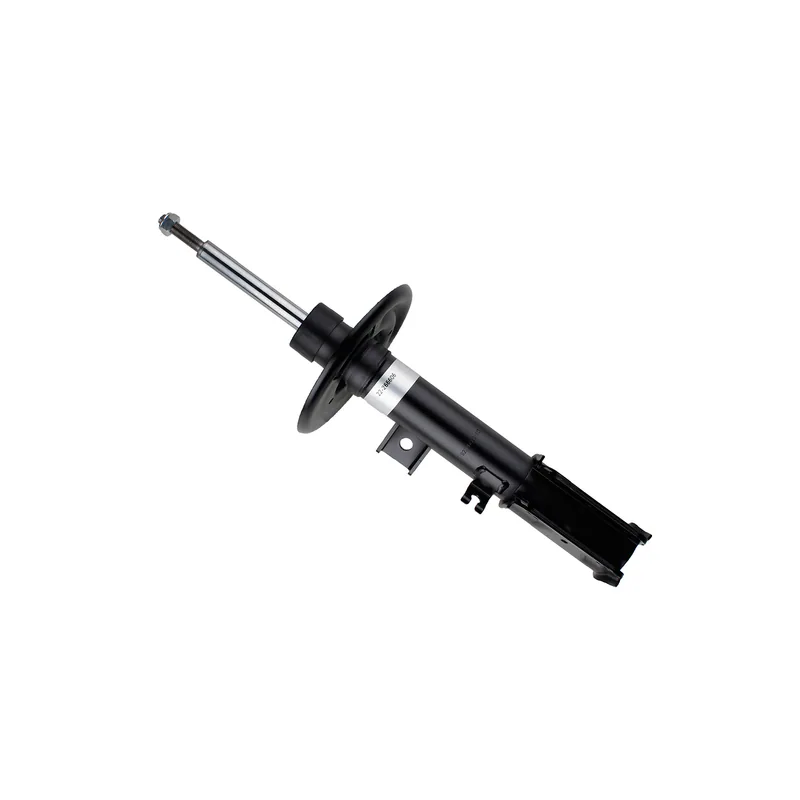

Bilstein 22-266606 B4 OE Replacement Strut Assembly
Sold each
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
Matching part for the other side
- 22-266613 B4 OE Replacement Strut Assembly (Front left)
- 22-266590 B4 OE Replacement Strut Assembly (Front left)
- Replaces OE
Ford DB5Z 18124-AA, Ford DB5Z 18124-AB, Ford DB5Z 18124-AC, Ford DB5Z 18124-AD, Ford DB5Z 18124-H, Ford DB5Z 18124-R and 7 more
Ford DB5Z 18124-S, Ford DB5Z 18124-V, Ford FB5Z 18124-A, Ford FB5Z 18124-L, Ford FB5Z 18124-M, Ford FB5Z 18124-P, Ford FB5Z 18124-S
- Country of origin
- Romania
- Box
- Ships in Bilstein's own box (about 60 × 20 × 16 cm, 5.7 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
33 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| Ford Explorer | 2018–2019 | Base, Limited, Platinum, XLT | Front right | All | — |
| Ford Explorer | 2016–2017 | Base, Limited, Platinum, Sport, XLT | Front right | All | — |
| Ford Explorer | 2014–2015 | Base, Limited, Sport, XLT | Front right | All | — |
| Ford Explorer | 2013 | Base, Limited, Sport, XLT | Front right | All |
|
| Ford Police Interceptor Utility | 2016–2018 | Base | Front right | All | — |
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 20.39
- Collapsed Length (in)
- 15.47
- Extended Length (mm)
- 518.0
- Collapsed Length (mm)
- 393.0
- Upper Mount Type
- Stem
- Lower Mount Type
- Bracket
- Internal Design
- Twintube
- Finish
- Black Paint
- Boot Included
- No
- Spring Seat Included
- Yes - Fixed
Installation & warranty
Bilstein general installation instructions (PDF)
Limited Lifetime Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
