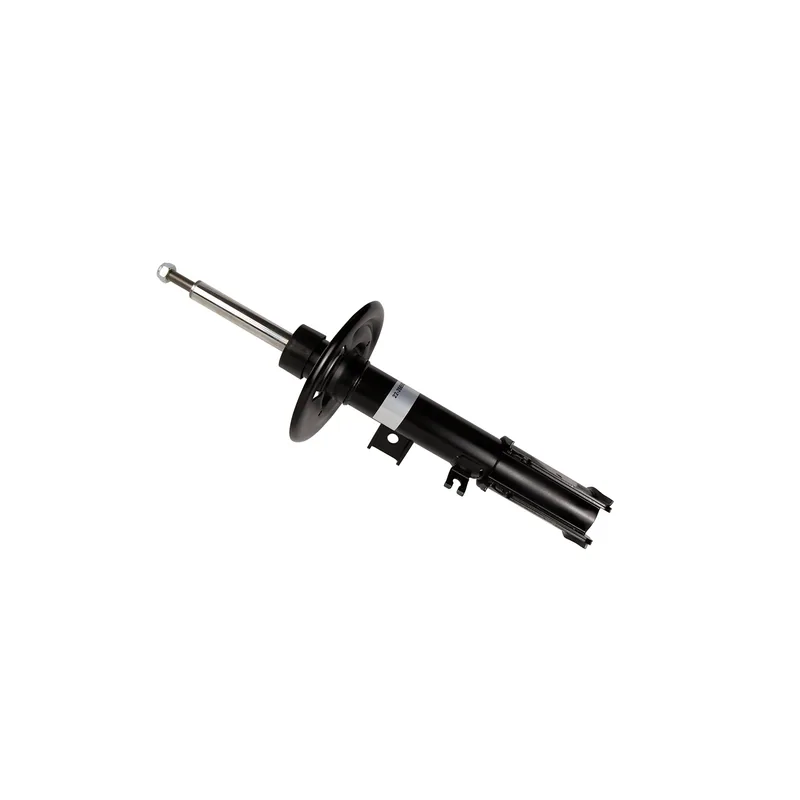

Bilstein 22-266583 B4 OE Replacement Strut Assembly
Sold each
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
Matching part for the other side
- 22-266590 B4 OE Replacement Strut Assembly (Front left)
- 22-266613 B4 OE Replacement Strut Assembly (Front left)
- Replaces OE
- Ford BB5Z 18124-C, Ford BB5Z 18124-D, Ford DB5Z 18124-L, Ford DB5Z 18124-M
- Country of origin
- Romania
- Box
- Ships in Bilstein's own box (about 60 × 20 × 16 cm, 7 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
10 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| Ford Explorer | 2013 | Base, Limited, Sport, XLT | Front right | All |
|
| Ford Explorer | 2011–2012 | Base, Limited, XLT | Front right | All | — |
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 20.39
- Collapsed Length (in)
- 15.43
- Extended Length (mm)
- 518.0
- Collapsed Length (mm)
- 392.0
- Upper Mount Type
- Stem
- Lower Mount Type
- Bracket
- Internal Design
- Twintube
- Finish
- Black Paint
- Boot Included
- No
- Spring Seat Included
- Yes - Fixed
Installation & warranty
Bilstein general installation instructions (PDF)
Limited Lifetime Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
