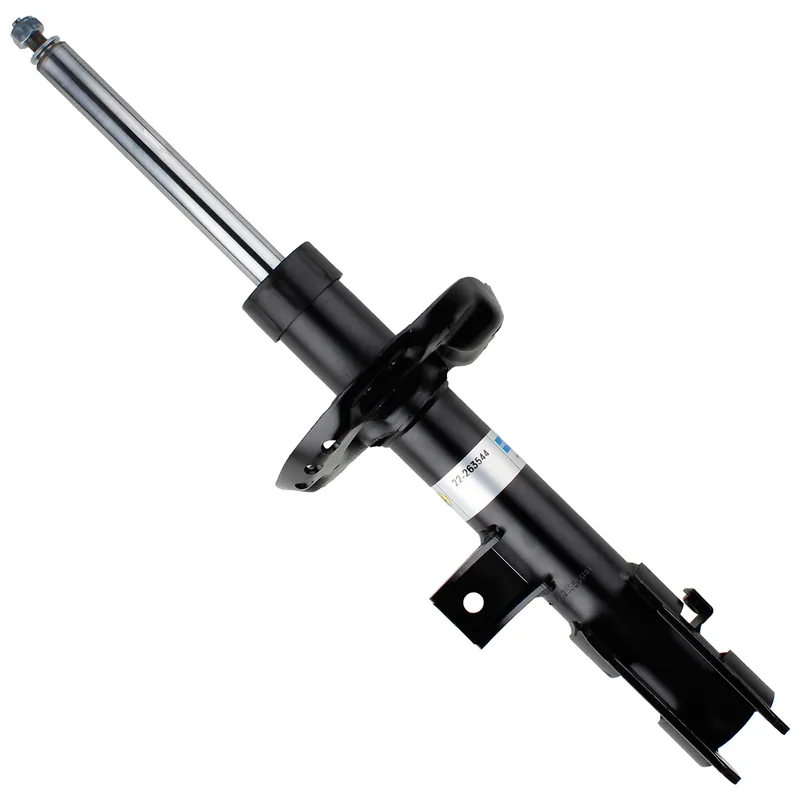

Bilstein 22-263544 B4 OE Replacement Strut Assembly
Sold each
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
Matching part for the other side
- 22-266187 B4 OE Replacement Strut Assembly (Front right)
- Replaces OE
- Hyundai 54651-D3000
- Country of origin
- Romania
- Box
- Ships in Bilstein's own box (about 67 × 20 × 16 cm, 5.9 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
29 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| Hyundai Tucson | 2020 | Limited, SE, SEL, Sport, Value Edition | Front left | All | — |
| Hyundai Tucson | 2019 | Limited, SE, SEL, Sport, Ultimate, Value Edition | Front left | All | — |
| Hyundai Tucson | 2018 | Base, Limited, SE, SEL, SEL Plus, Sport, Value Edition | Front left | All | — |
| Hyundai Tucson | 2017 | Base, Eco, Limited, SE, Sport, Value | Front left | All | — |
| Hyundai Tucson | 2016 | Base, Eco, Limited, SE, Sport | Front left | All | — |
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 22.95
- Collapsed Length (in)
- 15.24
- Extended Length (mm)
- 583.0
- Collapsed Length (mm)
- 387.0
- Upper Mount Type
- Stem
- Lower Mount Type
- Clevis
- Internal Design
- Twintube
- Finish
- Black Paint
- Boot Included
- No
- Spring Seat Included
- Yes - Fixed
Installation & warranty
Bilstein general installation instructions (PDF)
Limited Lifetime Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
