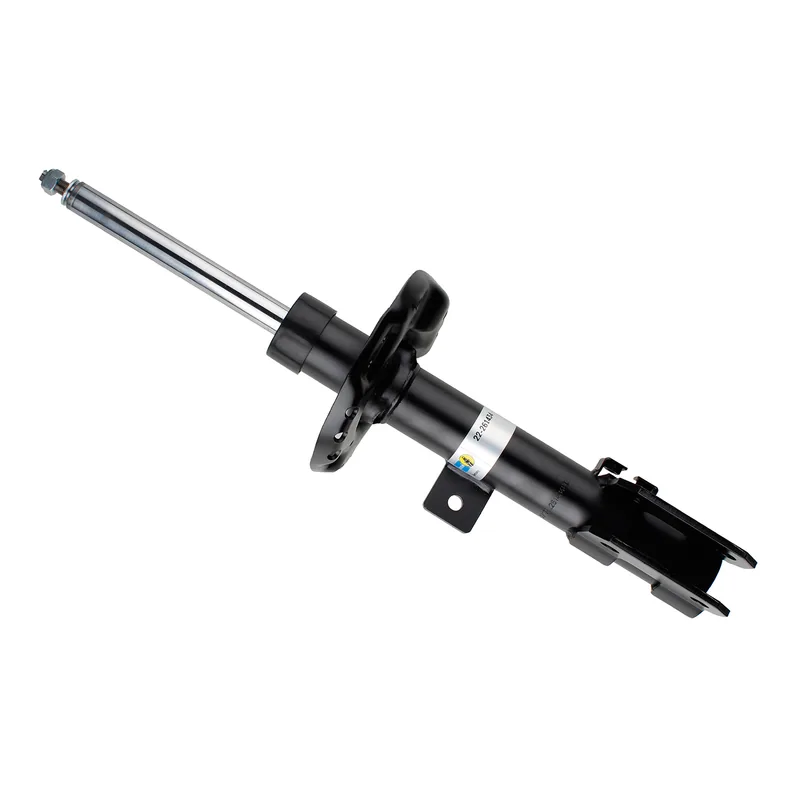

Bilstein 22-261434 B4 OE Replacement Strut Assembly
Sold each
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
Matching part for the other side
- 22-261458 B4 OE Replacement Strut Assembly (Front right)
- Replaces OE
- Kia 54651-C6000, Kia 54651-C6001, Kia 54651-C6002, Kia 54651-C6003, Kia 54651-C6004, Kia 54651-C6005
- Country of origin
- Romania
- Box
- Ships in Bilstein's own box (about 66 × 20 × 16 cm, 5.9 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
24 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| Kia Sorento | 2020 | EX, LX, S, SX | Front left | All | — |
| Kia Sorento | 2019 | EX, LX, S, SX, SX Limited | Front left | All | — |
| Kia Sorento | 2016–2018 | EX, L, LX, SX, SX Limited | Front left | All | — |
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 22.80
- Collapsed Length (in)
- 15.59
- Extended Length (mm)
- 579.0
- Collapsed Length (mm)
- 396.0
- Upper Mount Type
- Stem
- Lower Mount Type
- Bracket
- Internal Design
- Twintube
- Finish
- Black Paint
- Boot Included
- No
- Spring Seat Included
- Yes - Fixed
Installation & warranty
Bilstein general installation instructions (PDF)
Limited Lifetime Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
