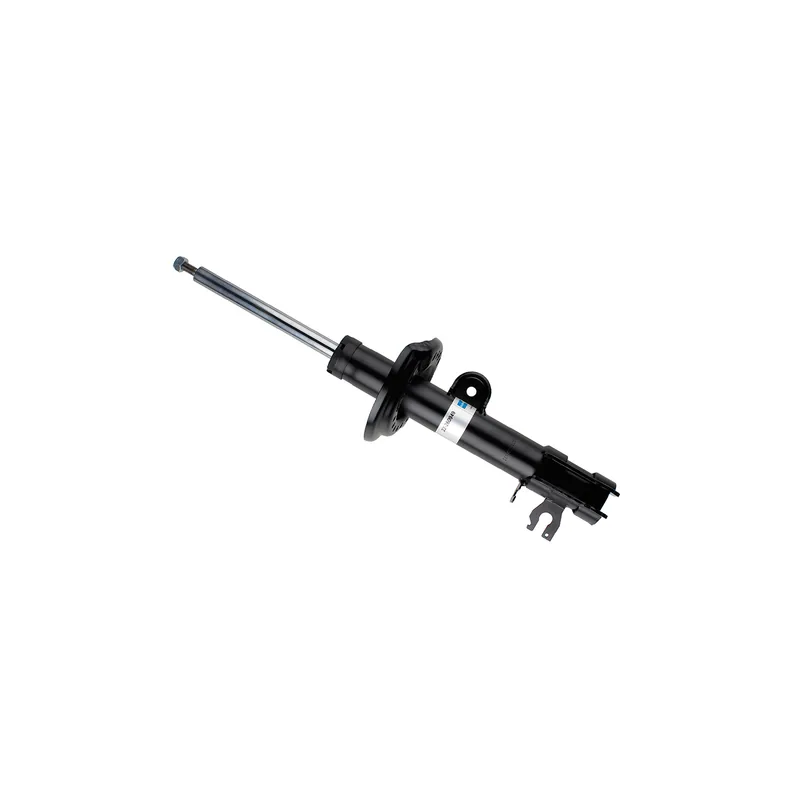

Bilstein 22-260949 B4 OE Replacement Strut Assembly
Sold each
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
Matching part for the other side
- 22-260956 B4 OE Replacement Strut Assembly (Front right)
- 22-267429 B4 OE Replacement Strut Assembly (Front right)
- Replaces OE
- Fiat 6828 5303AA, Fiat 6829 5480AA, Fiat 6829 5498AA
- Country of origin
- Romania
- Box
- Ships in Bilstein's own box (about 66 × 20 × 16 cm, 4.7 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
16 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| Fiat 500X | 2018 | Lounge, Pop, Sport, Trekking, Urbana | Front left | FWD | — |
| Fiat 500X | 2017 | Lounge, Sport, Trekking, Urbana | Front left | FWD | — |
| Fiat 500X | 2017 | Pop | Front left | FWD · L4 1.4L | — |
| Fiat 500X | 2017 | Pop | Front left | FWD · L4 2.4L | — |
| Fiat 500X | 2016 | Pop | Front left | All | — |
| Fiat 500X | 2016 | Easy, Lounge, Sport, Trekking, Trekking Plus | Front left | FWD | — |
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 22.65
- Collapsed Length (in)
- 15.89
- Extended Length (mm)
- 575.5
- Collapsed Length (mm)
- 403.5
- Upper Mount Type
- Stem
- Lower Mount Type
- Bracket
- Internal Design
- Twintube
- Finish
- Black Paint
- Boot Included
- N/A
- Spring Seat Included
- Yes - Fixed
Installation & warranty
Bilstein general installation instructions (PDF)
Limited Lifetime Warranty · Warranty terms (PDF)
