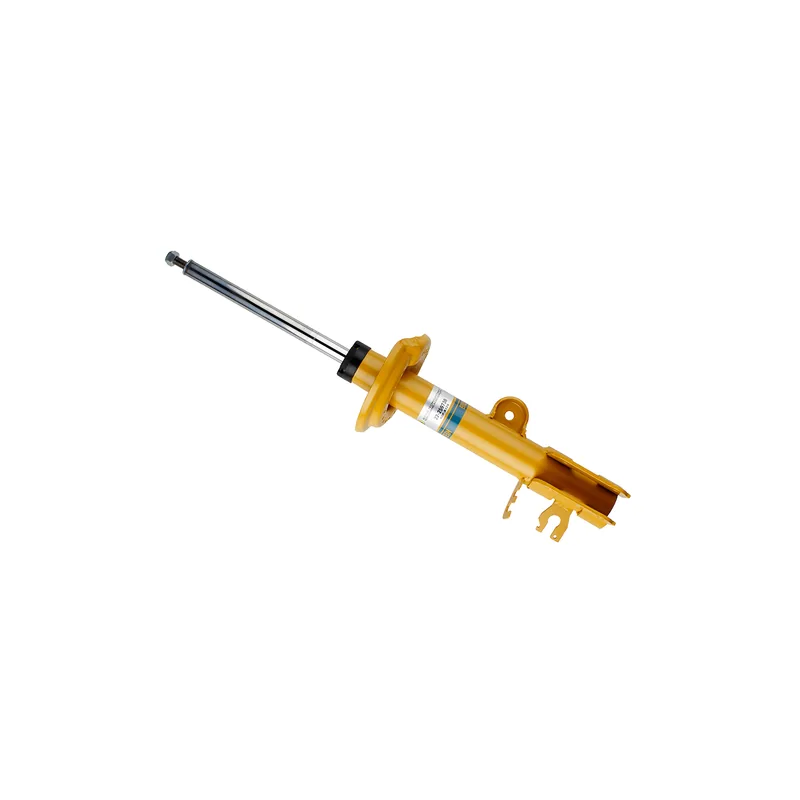

Bilstein 22-259738 B6 Strut Assembly
Sold each
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
Matching part for the other side
- 22-259745 B6 Strut Assembly (Rear right)
- 22-259721 B6 Strut Assembly (Rear right)
- Replaces OE
- Fiat 68285151AA, Fiat 68295500AA, Fiat 68439809AA
- Country of origin
- Romania
- Box
- Ships in Bilstein's own box (about 71 × 20 × 16 cm, 5 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
31 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| Fiat 500X | 2023 | Pop, Sport | Rear left | All | — |
| Fiat 500X | 2022 | Pop, Sport, Trekking | Rear left | All | — |
| Fiat 500X | 2020–2021 | Pop, Sport, Trekking, Trekking Plus | Rear left | All | — |
| Fiat 500X | 2019 | Pop, Trekking, Trekking Plus | Rear left | All | — |
| Fiat 500X | 2018 | Lounge, Pop, Sport, Trekking, Urbana | Rear left | AWD | — |
| Fiat 500X | 2017 | Lounge, Sport, Trekking, Urbana | Rear left | AWD | — |
| Fiat 500X | 2017 | Pop | Rear left | AWD · L4 2.4L | — |
| Fiat 500X | 2016 | Easy, Lounge, Sport, Trekking, Trekking Plus | Rear left | AWD | — |
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 24.76
- Collapsed Length (in)
- 16.57
- Extended Length (mm)
- 629.0
- Collapsed Length (mm)
- 421.0
- Upper Mount Type
- Stem
- Lower Mount Type
- Bracket
- Internal Design
- Twintube
- Finish
- Yellow Paint
- Reservoir
- No
- Adjustable Damping
- Non-Adjustable
- Boot Included
- N/A
- Spring Seat Included
- Yes - Fixed
Installation & warranty
Bilstein general installation instructions (PDF)
Limited Lifetime Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
