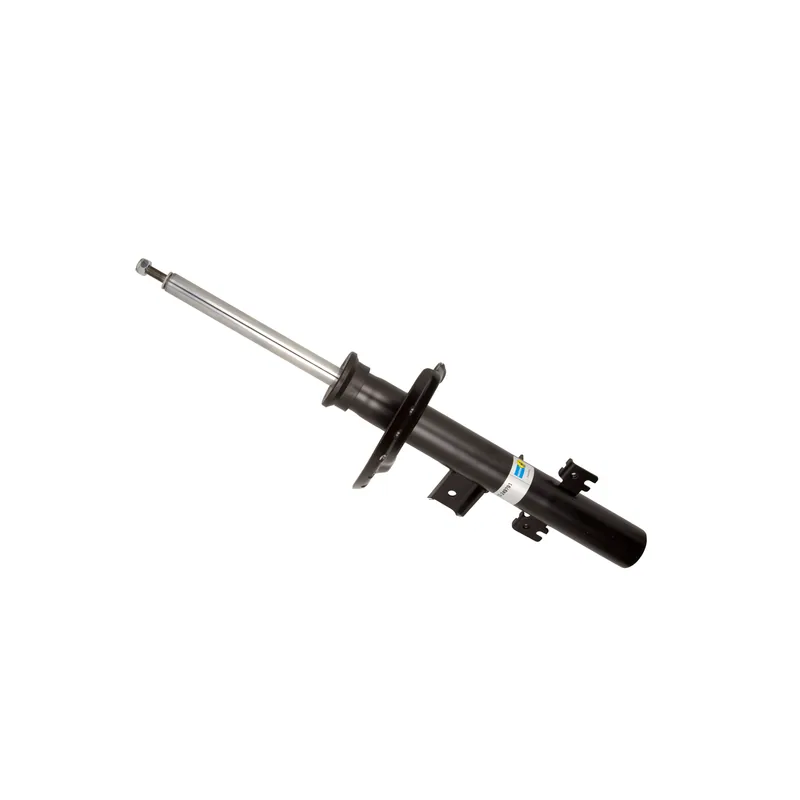

Bilstein 22-249791 B4 OE Replacement Strut Assembly
Sold each
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
Matching part for the other side
- 22-249807 B4 OE Replacement Strut Assembly (Rear right)
- Replaces OE
Land Rover LR0 24438, Land Rover LR0 44681, Land Rover LR0 63740, Land Rover LR0 70951, Land Rover LR0 79420, Land Rover LR024438 and 4 more
Land Rover LR044681, Land Rover LR063740, Land Rover LR070951, Land Rover LR079420
- Country of origin
- Romania
- Box
- Ships in Bilstein's own box (about 66 × 20 × 16 cm, 6.2 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
39 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| Land Rover Range Rover Evoque | 2018–2019 | Autobiography, HSE, HSE Dynamic, Landmark Edition, SE, SE Dynamic, SE Premium | Rear left | All |
|
| Land Rover Range Rover Evoque | 2017 | Autobiography, HSE, HSE Dynamic, SE, SE Dynamic, SE Premium | Rear left | All |
|
| Land Rover Range Rover Evoque | 2016 | Autobiography, HSE, HSE Dynamic, SE, SE Premium | Rear left | All |
|
| Land Rover Range Rover Evoque | 2015 | Autobiography, Autobiography Dynamic, Dynamic, Prestige, Pure | Rear left | All |
|
| Land Rover Range Rover Evoque | 2012–2014 | Dynamic, Prestige, Pure | Rear left | All |
|
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 22.52
- Collapsed Length (in)
- 13.58
- Extended Length (mm)
- 572.0
- Collapsed Length (mm)
- 345.0
- Upper Mount Type
- Stem
- Lower Mount Type
- Base Cup
- Internal Design
- Twintube
- Finish
- Black Paint
- Boot Included
- No
- Spring Seat Included
- Yes - Fixed
Installation & warranty
Bilstein general installation instructions (PDF)
Limited Lifetime Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
