BetterB6 Performance

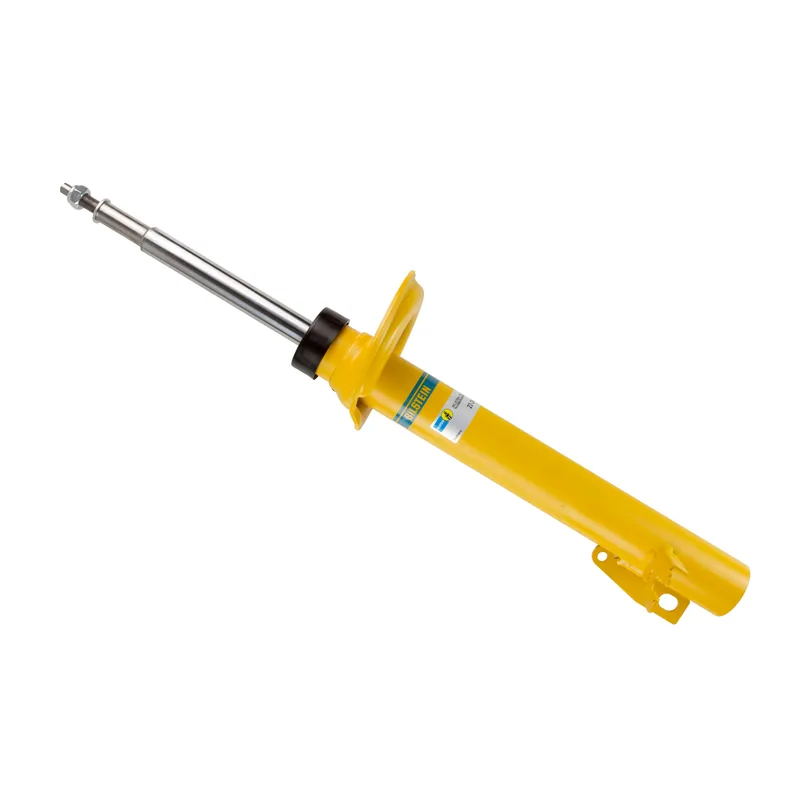

Bilstein 22-249241 B6 Strut Assembly
Sold each · 2 per axle
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
- Replaces OE
- Dodge 68157795AC, Dodge 68157795AE, Dodge 68185556AC, Dodge 68185556AF, Dodge 68245775AB, Dodge 68268185AB, Dodge 68274695AB
- Replaces Bilstein
- 22-292216
- Country of origin
- Romania
- Box
- Ships in Bilstein's own box (about 77 × 20 × 16 cm, 7.5 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
31 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| Ram ProMaster 1500 | 2014–2023 | Base | Front | All | — |
| Ram ProMaster 2500 | 2014–2024 | Base | Front | All | — |
| Ram ProMaster 3500 | 2014–2023 | Base | Front | All | — |
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 26.81
- Collapsed Length (in)
- 19.53
- Extended Length (mm)
- 681.0
- Collapsed Length (mm)
- 496.0
- Shaft Diameter
- 22mm
- Upper Mount Type
- Stem
- Lower Mount Type
- Base Cup
- Internal Design
- Twintube
- Finish
- Yellow Paint
- Reservoir
- No
- Adjustable Damping
- Non-Adjustable
- Boot Included
- No
- Spring Seat Included
- Yes - Fixed
Installation & warranty
Bilstein general installation instructions (PDF)
Limited Lifetime Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
