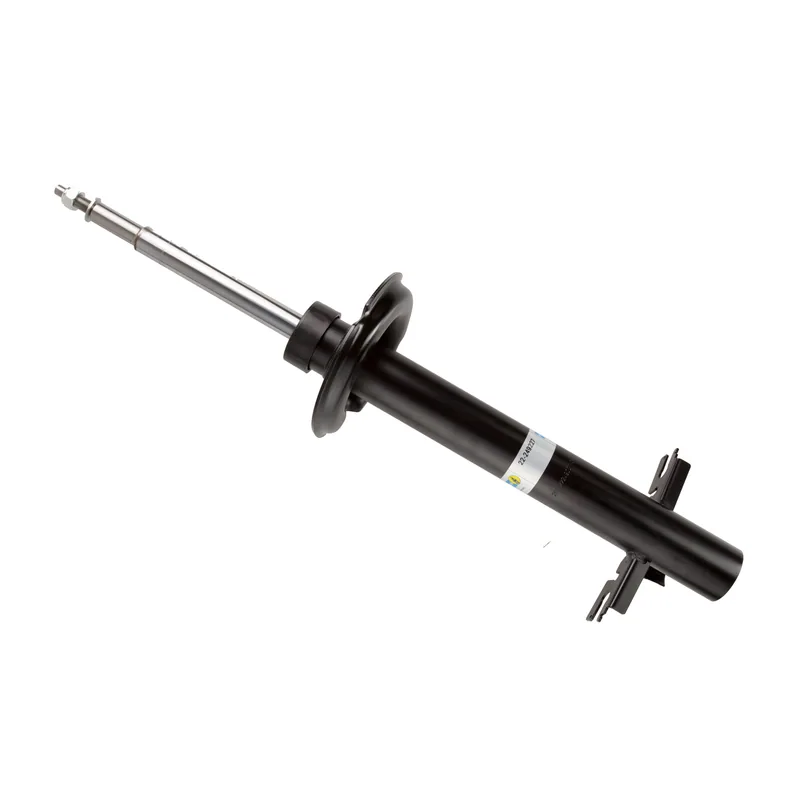

Bilstein 22-249227 B4 OE Replacement Strut Assembly
Sold each · 2 per axle
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
- Replaces Bilstein
- 22-292209
- Country of origin
- Romania
- Box
- Ships in Bilstein's own box (about 77 × 20 × 16 cm, 7.5 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
18 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| Ram ProMaster 1500 | 2014–2019 | Base | Front | All | — |
| Ram ProMaster 2500 | 2014–2019 | Base | Front | All | — |
| Ram ProMaster 3500 | 2014–2019 | Base | Front | All | — |
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 26.81
- Collapsed Length (in)
- 19.53
- Extended Length (mm)
- 681.0
- Collapsed Length (mm)
- 496.0
- Upper Mount Type
- Stem
- Lower Mount Type
- Base Cup
- Internal Design
- Twintube
- Finish
- Black Paint
- Boot Included
- No
- Spring Seat Included
- Yes - Fixed
Installation & warranty
Bilstein general installation instructions (PDF)
Limited Lifetime Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
BILSTEIN is a trademark of thyssenkrupp Bilstein GmbH. Eskimo is an independent retailer.
