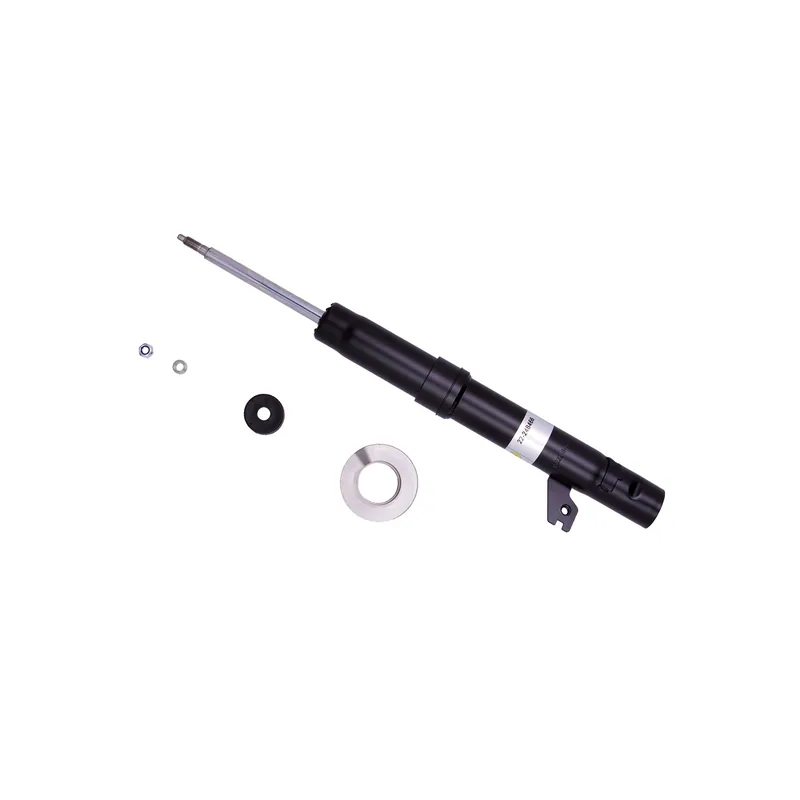

Bilstein 22-248466 B4 OE Replacement Strut Assembly
Sold each
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
Matching part for the other side
- 22-248473 B4 OE Replacement Strut Assembly (Front right)
- Replaces OE
- Mazda GAM6-34-900A, Mazda GS1D-34-900C, Mazda GS1D-34-900D, Mazda GS1D-34-900E, Mazda GS1D-34-900F, Mazda GS3L-34-900B, Mazda GS4H-34-900B
- Replaces Bilstein
- 22-227720
- Country of origin
- Romania
- Box
- Ships in Bilstein's own box (about 55 × 20 × 16 cm, 2.5 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
10 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| Mazda 6 | 2009–2013 | S, i | Front left | All | — |
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 18.19
- Collapsed Length (in)
- 13.33
- Extended Length (mm)
- 462.0
- Collapsed Length (mm)
- 338.5
- Upper Mount Type
- Stem
- Lower Mount Type
- Base Cup
- Internal Design
- Twintube
- Finish
- Black Paint
- Boot Included
- No
- Spring Seat Included
- No
Installation & warranty
Bilstein general installation instructions (PDF)
Limited Lifetime Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
