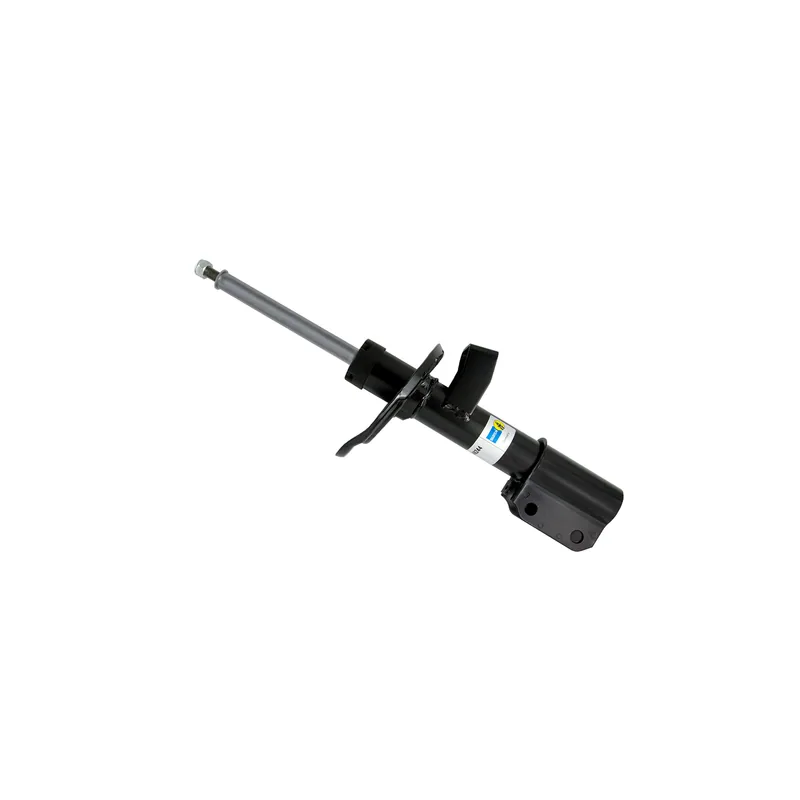

Bilstein 22-248244 B4 OE Replacement Strut Assembly
Sold each · 2 per axle
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
- Replaces OE
- smart 453 323 00 00
- Country of origin
- Romania
- Box
- Ships in Bilstein's own box (about 54 × 20 × 16 cm, 3.6 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
13 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| Smart EQ fortwo | 2019 | Passion, Prime, Pure | Front | All | — |
| Smart Fortwo | 2018 | Electric Drive | Front | All | — |
| Smart Fortwo | 2017 | Electric Drive, Passion, Prime, Proxy, Pure | Front | All | — |
| Smart Fortwo | 2016 | Passion, Prime, Proxy, Pure | Front | All | — |
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 17.95
- Collapsed Length (in)
- 11.73
- Extended Length (mm)
- 456.0
- Collapsed Length (mm)
- 298.0
- Upper Mount Type
- Stem
- Lower Mount Type
- Bracket
- Internal Design
- Twintube
- Finish
- Black Paint
- Boot Included
- No
- Spring Seat Included
- Yes - Fixed
Installation & warranty
Bilstein general installation instructions (PDF)
Limited Lifetime Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
BILSTEIN is a trademark of thyssenkrupp Bilstein GmbH. Eskimo is an independent retailer.
