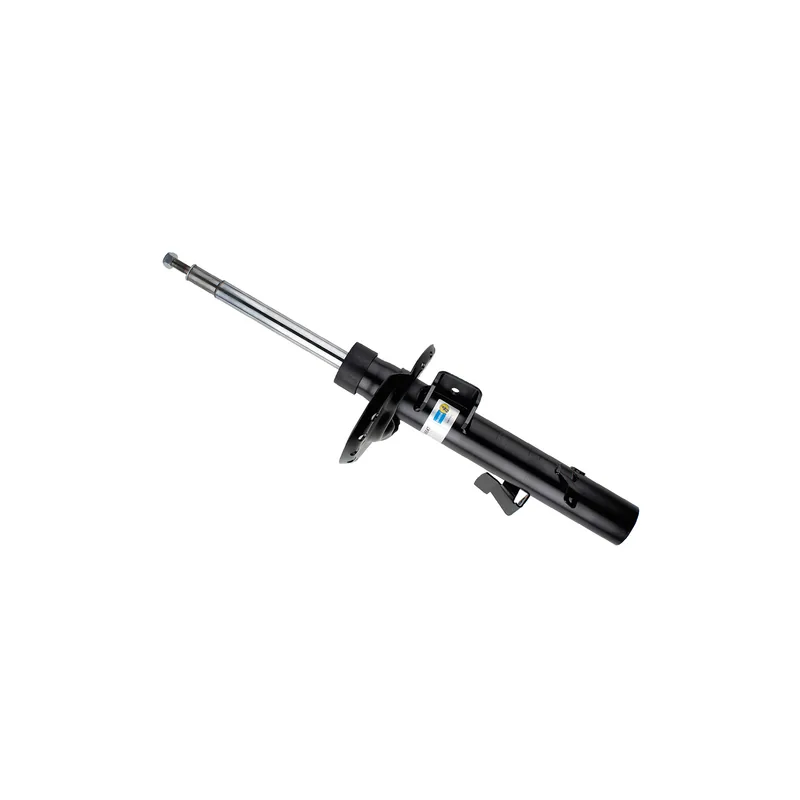

Bilstein 22-246547 B4 OE Replacement Strut Assembly
Sold each
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
Matching part for the other side
- 22-246554 B4 OE Replacement Strut Assembly (Front right)
- Replaces OE
- Land Rover LR0 01141, Land Rover LR0 26068, Land Rover LR0 31665, Land Rover LR001141, Land Rover LR031665
- Country of origin
- Romania
- Box
- Ships in Bilstein's own box (about 64 × 20 × 16 cm, 6.1 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
19 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| Land Rover LR2 | 2011–2015 | Base, HSE, HSE Lux | Front left | All | — |
| Land Rover LR2 | 2009–2010 | HSE | Front left | All | — |
| Land Rover LR2 | 2008 | HSE, SE | Front left | All | — |
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 21.81
- Collapsed Length (in)
- 14.33
- Extended Length (mm)
- 554.0
- Collapsed Length (mm)
- 364.0
- Upper Mount Type
- Stem
- Lower Mount Type
- Base Cup
- Internal Design
- Twintube
- Finish
- Black Paint
- Boot Included
- No
- Spring Seat Included
- Yes - Fixed
- Outer Housing Diameter
- 55.5mm
Installation & warranty
Bilstein general installation instructions (PDF)
Limited Lifetime Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
