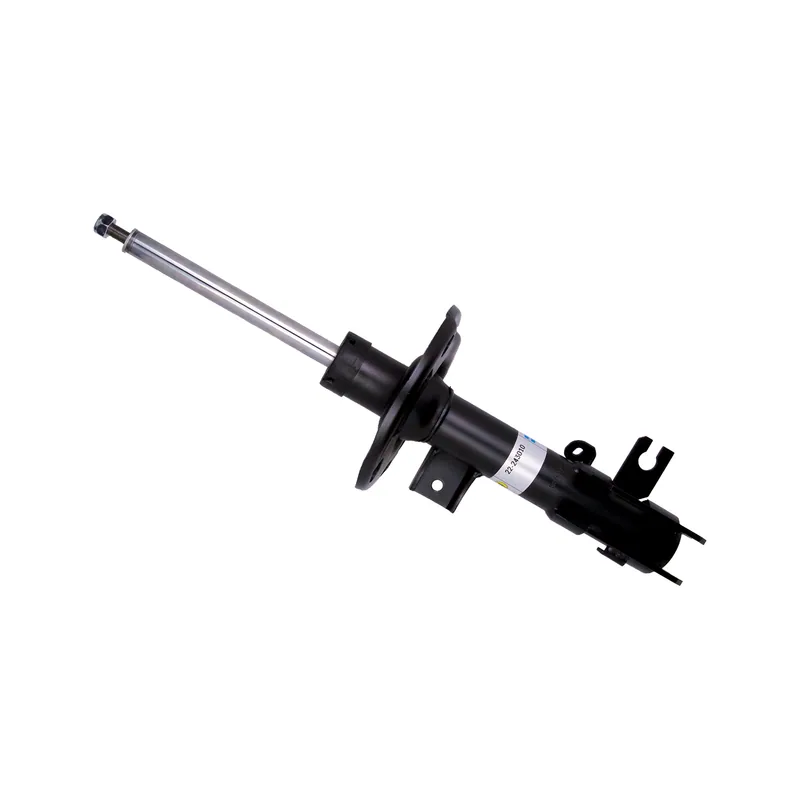

Bilstein 22-243010 B4 OE Replacement Strut Assembly
Sold each
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
Matching part for the other side
- 22-243003 B4 OE Replacement Strut Assembly (Front left)
- Replaces OE
- Mazda GBFN-34-700C, Mazda GHP9-34-700B, Mazda GHT6-34-700A, Mazda GJR9-34-700C, Mazda GJR9-34-700E, Mazda GMN4-34-700
- Country of origin
- Romania
- Box
- Ships in Bilstein's own box (about 62 × 20 × 16 cm, 5 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
33 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| Mazda 6 | 2021 | Carbon Edition, Grand Touring, Grand Touring Reserve, Signature, Sport, Touring | Front right | All | — |
| Mazda 6 | 2018–2020 | Grand Touring, Grand Touring Reserve, Signature, Sport, Touring | Front right | All | — |
| Mazda 6 | 2014–2017 | Grand Touring, Sport, Touring | Front right | All | — |
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 21.18
- Collapsed Length (in)
- 13.46
- Extended Length (mm)
- 538.0
- Collapsed Length (mm)
- 342.0
- Upper Mount Type
- Stem
- Lower Mount Type
- Bracket
- Internal Design
- Twintube
- Finish
- Black Paint
- Boot Included
- No
- Spring Seat Included
- Yes - Fixed
Installation & warranty
Bilstein general installation instructions (PDF)
Limited Lifetime Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
