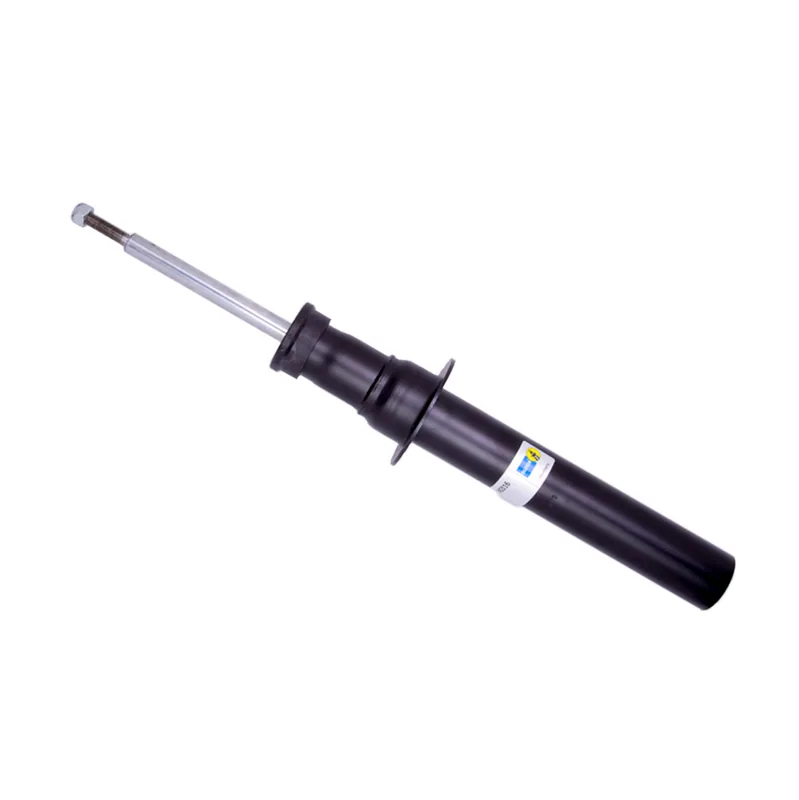

Bilstein 22-240316 B4 OE Replacement Strut Assembly
Sold each · 2 per axle
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
- Replaces OE
- BMW 31 31 6 851 745, BMW 31 31 6 851 747, BMW 31 31 6 851 749
- Country of origin
- Romania
- Box
- Ships in Bilstein's own box (about 65 × 20 × 16 cm, 3.9 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
38 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| BMW X5 | 2016–2018 | sDrive35i, xDrive35d, xDrive35i, xDrive40e, xDrive50i | Front | All |
|
| BMW X5 | 2014–2015 | sDrive35i, xDrive35d, xDrive35i, xDrive50i | Front | All |
|
| BMW X6 | 2015–2019 | sDrive35i, xDrive35i, xDrive50i | Front | All |
|
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 22.20
- Collapsed Length (in)
- 16.26
- Extended Length (mm)
- 564.0
- Collapsed Length (mm)
- 413.0
- Upper Mount Type
- Stem
- Lower Mount Type
- Base Cup
- Internal Design
- Twintube
- Finish
- Black Paint
- Boot Included
- No
- Spring Seat Included
- Yes - Fixed
