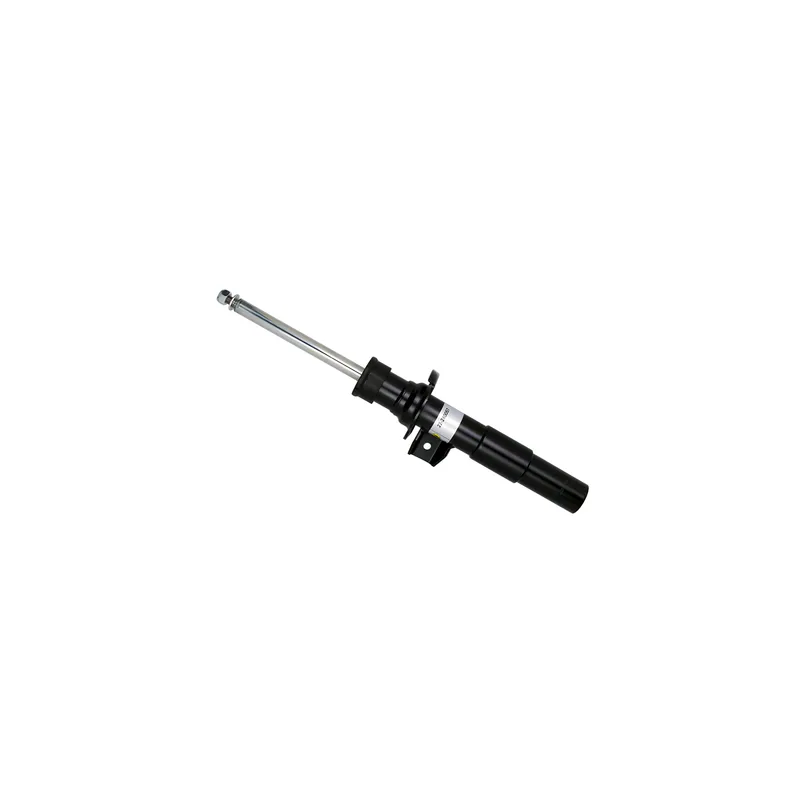

Bilstein 22-240057 B4 OE Replacement Strut Assembly
Sold each
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
Matching part for the other side
- 22-240064 B4 OE Replacement Strut Assembly (Front right)
- Replaces OE
- BMW 31 31 6 852 215, BMW 31 31 6 865 173, BMW 31 31 6 867 525, BMW 31 31 6 870 357, BMW 31 31 6 880 097
- Country of origin
- Romania
- Box
- Ships in Bilstein's own box (about 53 × 20 × 16 cm, 3.5 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
16 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| BMW i3 | 2014–2021 | Base, Range Extender | Front left | All | — |
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 17.34
- Collapsed Length (in)
- 9.92
- Extended Length (mm)
- 440.5
- Collapsed Length (mm)
- 252.0
- Upper Mount Type
- Stem
- Lower Mount Type
- Base Cup
- Internal Design
- Twintube
- Finish
- Black Paint
- Boot Included
- No
- Spring Seat Included
- Yes - Fixed
Installation & warranty
Bilstein general installation instructions (PDF)
Limited Lifetime Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
BILSTEIN is a trademark of thyssenkrupp Bilstein GmbH. Eskimo is an independent retailer.
