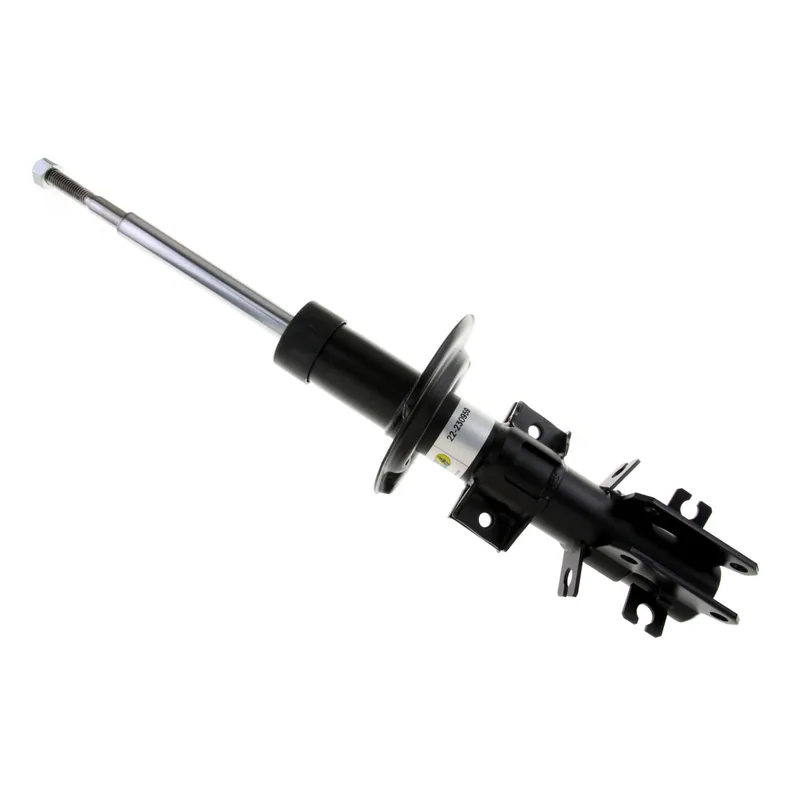

Bilstein 22-230959 B4 OE Replacement Strut Assembly
Sold each · 2 per axle
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
- Replaces OE
Volvo 271709, Volvo 271710, Volvo 271831, Volvo 271833, Volvo 3546834, Volvo 3546835 and 14 more
Volvo 3546900, Volvo 3546901, Volvo 6816319, Volvo 8600901, Volvo 8612887, Volvo 9140070, Volvo 9140071, Volvo 9140072, Volvo 9173314, Volvo 9173315, Volvo 9173316, Volvo 9173580, Volvo 9173850, Volvo 9191419
- Replaces Bilstein
- 22-045799
- Country of origin
- Romania
- Box
- Ships in Bilstein's own box (about 61 × 20 × 16 cm, 4.8 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
44 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| Volvo 850 | 1997 | Base, GLT, R, T-5 | Front | All | — |
| Volvo 850 | 1996 | Base, GLT, R, Turbo | Front | All | — |
| Volvo 850 | 1995 | Base, GLT, T-5R, Turbo | Front | All | — |
| Volvo 850 | 1994 | Base, GLT, Turbo | Front | All | — |
| Volvo 850 | 1993 | GLT | Front | All | — |
| Volvo C70 | 1998–2004 | Base | Front | All | — |
| Volvo S70 | 2000 | Base, GLT, GLT SE, T5 | Front | All | — |
| Volvo S70 | 1998–1999 | Base, GLT, T5 | Front | All | — |
| Volvo V70 | 2000 | Base, GLT, GLT SE, T5 | Front | All | — |
| Volvo V70 | 1999 | Base, GLT, T5 | Front | All | — |
| Volvo V70 | 1998 | Base, GLT, R, T5 | Front | All | — |
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 20.67
- Collapsed Length (in)
- 14.31
- Extended Length (mm)
- 525.0
- Collapsed Length (mm)
- 363.5
- Upper Mount Type
- Stem
- Lower Mount Type
- Bracket
- Internal Design
- Twintube
- Finish
- Black Paint
- Boot Included
- No
- Spring Seat Included
- Yes - Fixed
Installation & warranty
Bilstein general installation instructions (PDF)
Limited Lifetime Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
BILSTEIN is a trademark of thyssenkrupp Bilstein GmbH. Eskimo is an independent retailer.
