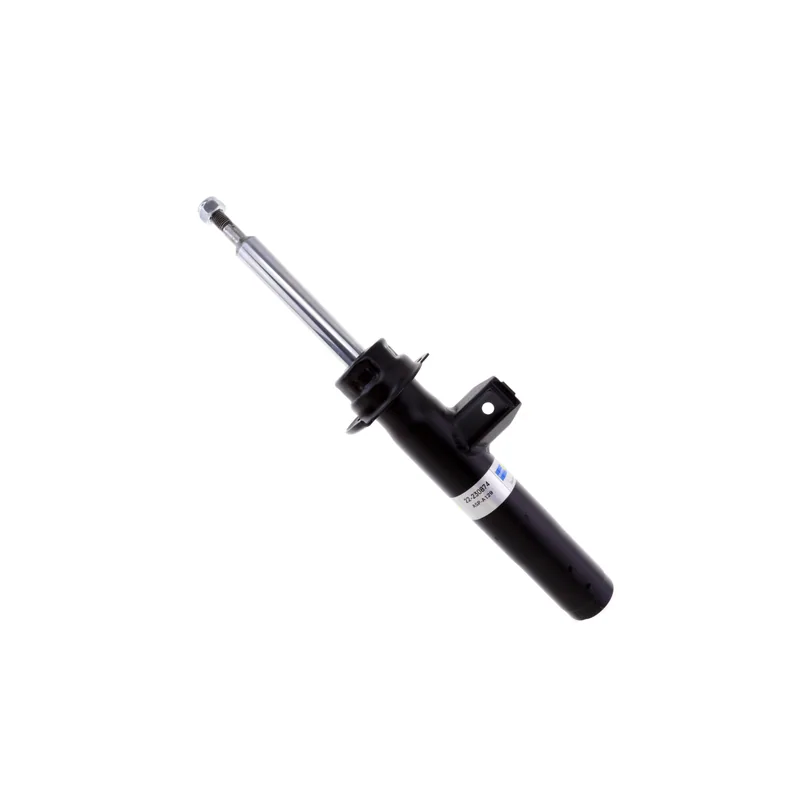

Bilstein 22-230874 B4 OE Replacement Strut Assembly
Sold each
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
Matching part for the other side
- 22-230867 B4 OE Replacement Strut Assembly (Front left)
- Replaces OE
- BMW 31 30 6 772 220, BMW 31 30 6 772 222, BMW 31 31 6 786 518, BMW 31 31 6 786 520
- Country of origin
- Romania
- Box
- Ships in Bilstein's own box (about 56 × 20 × 16 cm, 4.3 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
10 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| BMW 525xi | 2006–2007 | Base | Front right | All | — |
| BMW 528i xDrive | 2009–2010 | Base | Front right | All | — |
| BMW 528xi | 2008 | Base | Front right | All | — |
| BMW 530xi | 2006–2007 | Base | Front right | All | — |
| BMW 535i xDrive | 2009–2010 | Base | Front right | All | — |
| BMW 535xi | 2008 | Base | Front right | All | — |
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 18.70
- Collapsed Length (in)
- 13.03
- Extended Length (mm)
- 475.0
- Collapsed Length (mm)
- 331.0
- Upper Mount Type
- Stem
- Lower Mount Type
- Base Cup
- Internal Design
- Twintube
- Finish
- Black Paint
- Boot Included
- No
- Spring Seat Included
- Yes - Fixed
Installation & warranty
Bilstein general installation instructions (PDF)
Limited Lifetime Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
